SA UNI

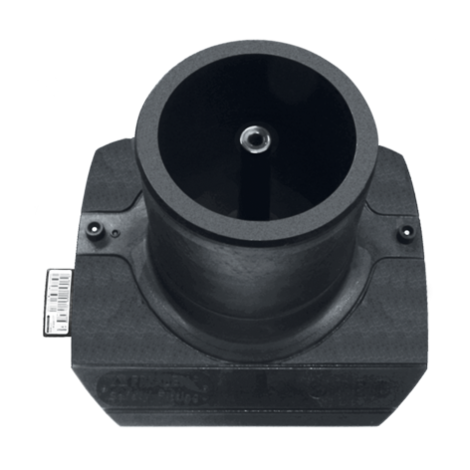

Saddle with outlet spigot Universal SDR 11

Saddle with outlet spigot Universal SA UNI SDR 11

Gas, water and H2

  • Maximum pressure: Gas 10 bar; Water 16 bar
  • Material; PE 100
  • Universal clamping option (balanced loading):
    • Safe clamping with UNITOP
    • Ideal distribution of force application
    • Perfect adaptation to pipe diameter
  • Pressure test of the fusing before tapping possible
  • Tapping under pressure possible
  • Safety technology
  • DVGW test mark: DV-8611AU2250

Note:

Can only be used with the clamping device UNITOP (Order No. 613385).

For pressure-free tapping, we recommend our FWAB drilling device.

Pressure test of the fusing before tapping with pressure test adapter FWDPA (Order No. 613596).

For tapping under pressure, please contact our hotline: +49 621 486-2325.

Also suitable for all special dimensions in relining application. For intermediate sizes in the diameter range d 280 - < d 315, please use SA UNI d 250 - 280.

Go back Data sheet

PE 100 SDR 11

Maximum permissible working pressure 16 bar (water) / 10 bar (gas)

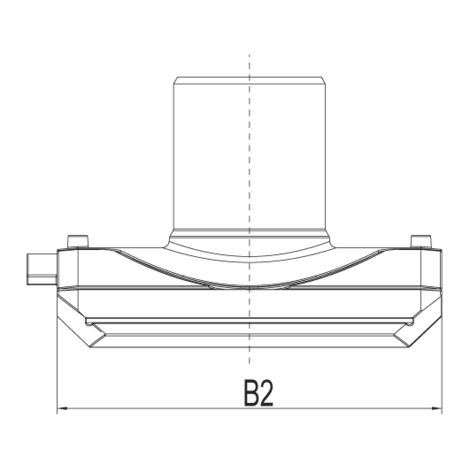

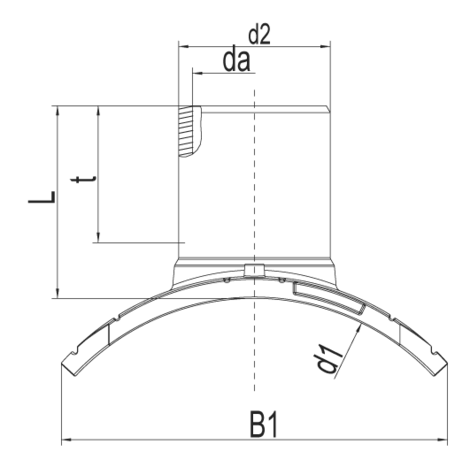

SKU d1 d2 B1 B2 L t Drilling
Ø da
Weight kg BX PU
616553 250-280 90 260 279 130 79 65 1,465 5 40
616554 250-280 110 260 279 140 82 84 1,610 5 40
616555 250-280 125 260 279 146 87 95 1,790 5 40
616556 250-280 160 260 279 158 98 123 2,180 5 40
616557 315-400 90 280 279 130 79 65 1,485 5 40
616558 315-400 110 280 279 140 82 84 1,630 5 40
616559 315-400 125 280 279 146 87 95 1,810 5 40
616560 315-400 160 280 279 158 98 123 2,190 5 40
616561 450-900 90 307 279 130 79 65 1,500 5 40
616562 450-900 110 307 279 140 82 84 1,645 5 40
616563 450-900 125 307 279 146 87 95 1,820 5 40
616564 450-900 160 307 279 158 98 123 2,200 5 40

FRIALEN safety fittings can be fused with SDR levels 11 to 26. Processing of other SDR levels on request. Please note the mandatory labels directly on the product.

DVGW test mark issued: DV-8611AU2250.

Areas of Application

Instead of cost-intensively integrating a T-piece, a branch or vent can be very comfortably created using the FRIALEN spigot saddle SA-UNI. The spigot outlet can be fused with FRIALEN couplers MB or UB.

Assembly Instructions

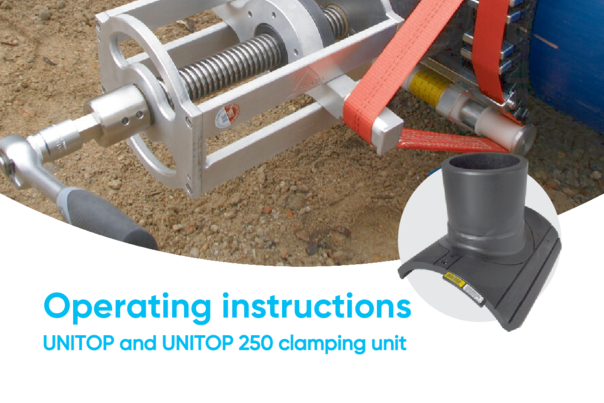

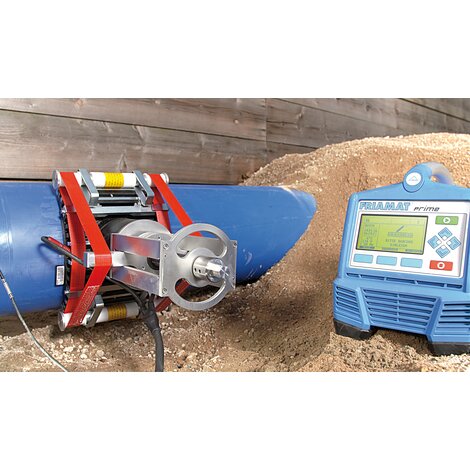

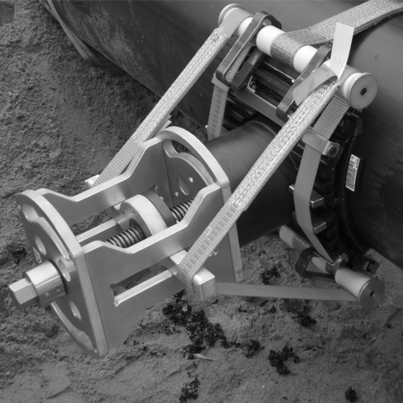

The saddle is clamped onto the pipe with the UNITOP clamping device (see FRIATOOLS product range). The clamping device UNITOP is an universal tool for all SA-UNI dimensions. Please read the assembly and operating instructions for the clamping device UNITOP.

The fusion of the HD-PE distribution pipes and the house connections with FRIALEN-Spigot Saddles SA-UNI takes place by FRIALEN-fusing – leakproof and longitudinally strong.

The saddle and the outlet spigot have to be prepared according to the general installation instructions (see assembly instruction FRIALEN-XL for laying large pipes and relining pipe networks). This involves removing the oxide skin and cleaning the pipe covered by the saddle.

For tapping of pipes without pressure please use the

FRIATOOLS tapping equipment FWAB XL. Please refer the assembly and operating instructions of the drilling device FWAB XL / FWAB ASA. The fusion and tapping of pipes under pressure is possible with special tapping equipment. Please contact our applications engineers.

Good reasons for using the

FRIALEN Spigot Saddle SA-UNI:

  • Compact construction

  • HD-PE saddle with exposed heating element for optimal heat transfer

  • Low tapping forces

  • Burr-free and almost flush tapping for maximum hydraulic performance

  • Leakage free tapping possible by means of a shut off element

  • Extra wide fusion zone

  • Additional barcode for tracing back the underground fitting (Traceability-Coding)

  • Before tapping the pipe a leak test can take place with the pressure testing device (FWDPA SA)

  • Touch proof electric contacts

  • Easy and safe assembly by top-loading with the UNITOP clamping device.

  • Fusion indicators for visual fusion control

  • Durable batch marking

  • Individually wrapped for dirt protection
