FWAB
Drilling equipment
FWAB drilling equipment for drilling HD-PE pipes in a pressure-free condition:
- Spigot saddles SA VL
- FRIALEN spigot saddles SA UNI
- FRIAFIT spigot saddles ASA UNI
- FRIAFIT sewage saddles ASA VL
- Driven by drill
Comprising:
- Hole saw (nominal size-related), hole saw mounting with drill shaft SDS-maximum,
- Extension for hole saw mounting (not for FWAB ASA as well as for SA UNI applications),
- Centring drill with ejector and catch sleeve
- Hexagonal spanner.
Note:

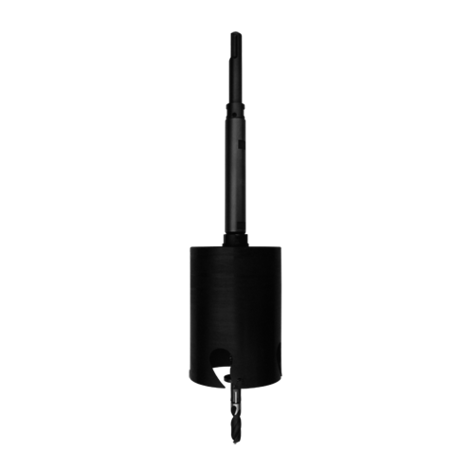

(Fig. shows FWAB XL 160)

SKU | Article description | Outgoing dimension | Weight kg |
---|---|---|---|
613832 | FWAB XL 90 for FRIALEN SA UNI | d 90 | 12,600 |
613833 | FWAB XL 110 for FRIALEN SA UNI | d 110 | 12,600 |
613834 | FWAB XL 125 for FRIALEN SA UNI | d 125 | 6,000 |
613829 | FWAB XL 160 for FRIALEN SA UNI | d 160 | 13,600 |
613830 | FWAB XL 225 for FRIALEN SA VL | d 225 | 14,300 |
613831 | FWAB XL 250 for FRIALEN SA VL | d 250 | 12,600 |
613850 | FWAB XL 280 for FRIALEN SA VL | d 280 | 12,600 |
613851 | FWAB XL 315 for FRIALEN SA VL | d 315 | 12,600 |
613852 | FWAB XL 355 for FRIALEN SA VL | d 355 | 14,300 |
613836 | FWAB XL 400 for FRIALEN SA VL | d 400 | 14,300 |
613838 | FWAB XL 160 for FRIAFIT ASA UNI | d 160 | 6,000 |
613835 | FWAB ASA 225 for FRIAFIT ASA VL | d 225 | 13,200 |
