RSV

Repair and reinforcement saddle, SDR11

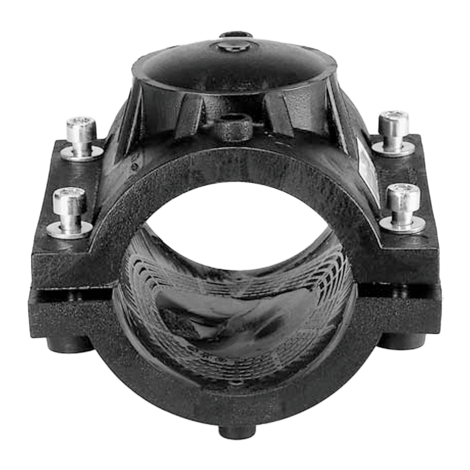

Repair and reinforcement saddle RSV SDR 11

  • Gas, water and H2
  • Maximum pressure: Gas 10 bar, Water 16 bar
  • Material: PE 100
  • 2 combined saddle components
  • Safety technology

Note:

Only apply to minor pipe damage.

The damage must be located within the repair area and not in the fusion zone.

Go back Data sheet

PE 100 SDR 11

Maximum permissible working pressure 16 bar (water) / 10 bar (gas)

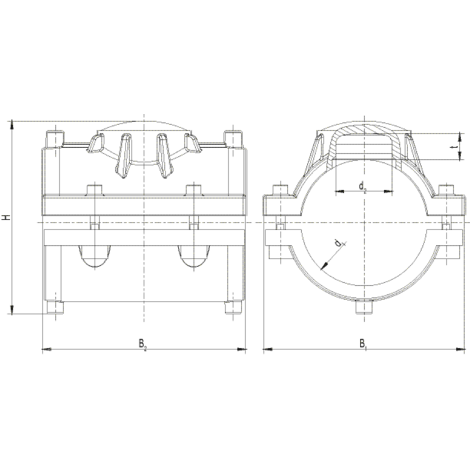

Reference d1 d2 B1 B2 H t Weight kg BX PU
615164 90 50 155 150 148 21 0,920 24 192
615165 110 50 178 180 170 21 1,162 16 128
615166 125 50 190 185 183 21 1,360 15 120
615168 160 50 225 195 218 21 1,670 10 80
615169 180 50 240 195 238 21 1,810 6 48
615170 200 50 250 195 258 21 1,820 5 40
615171 225 50 255 195 283 21 1,900 5 40

FRIALEN safety fittings can be fused with SDR levels 11 to 17.6. Other levels of SDR can be processed on request. Please note the mandatory labels directly on the product. DVGW test mark issued: DV-8606AU2249

Areas of Application

The FRIALEN-Repair and Reinforcing Saddles are used for the repair of minor pipe damages.

Assembly Instructions

The fusion of the HD-PE pipe with the FRIALEN-Repair and Reinforcing Saddle takes place by FRIALEN-fusing – leakproof and longitudinally strong.

In order to avoid discharge of media, the leak has to be sealed with a separate plug (≤ d2).

Both HD-PE saddles have to be prepared according to the general installation instructions (see “Assembly Instructions” for “FRIALEN-Safety Fittings for house connections and distribution pipes up to d 225”). This includes removing the oxide layer and cleaning the pipe covered by the saddles.

Good reasons for using the FRIALEN-VVS:

  • Compact construction

  • HD-PE saddle with exposed heating element for optimal heat transfer

  • Sealing area free of heating wires

  • Preassembled unit without loose parts

  • Extra wide fusion zone

  • Additional barcode for tracing back the fitting (Traceability-Coding)
