Universal transition adaptor HD-PE/brass with female thread

Universal transition adaptor brass pipe UAM

  • Water and gas
  • Maximum pressure: Water 16 bar, gas 5 bar
  • Material; PE 100 and brass [CW617N / CW612N, ISO 228 thread]

Note:

The brass side is anchored non-detachable and non-rotatable in the PE.

Installation independent of position possible.

For use in the water and gas sector.

Other thread dimensions available on request.

Go back Data sheet

PE 100 SDR 11

Maximum permissible working pressure 16 bar (water) / 5 bar (gas)

SKU d Rp L t SW Weight kg BX PU
616615 20 1/2" 79 41 26 0,080 80 4800
616616 25 3/4" 77 44 32 0,120 60 3600
616156 32 1´´ 88 47 40 0,190 36 2160
616157 40 1 1/4´´ 100 56 49 0,290 20 1200
616158 50 1 1/2´´ 102 57 55 0,350 16 960
616621 63 1 1/2" 115 63 55 0,450 10 600
616159 63 2´´ 120 63 67 0,580 10 600
616665 75 2 1/2" 128 70 82 0,760 10 300
616623 90 3" 144 78 94 1,030 8 240
616624 110 4" 161 87 120 1,870 6 180
616666 125 4" 161 92 120 1,990 6 180

Please note the mandatory labels directly on the product.

DVGW test mark issued with reg. no.:

  • DW-7511CR0155
  • DG-7521CR0172

The brass female thread is made of the material CW612N or CW617N.

Other brass materials available on request.

Areas of Application

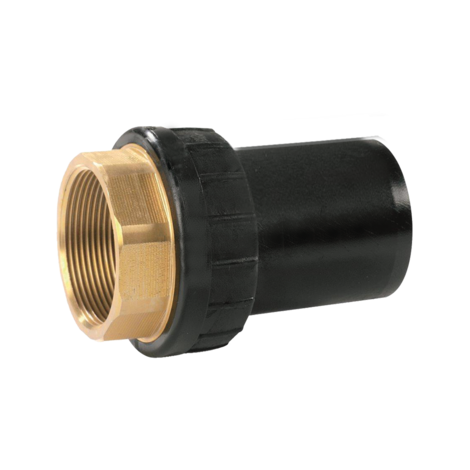

The FRIALEN Universal Adapter UAM serves to connect metal construction parts which have a screwed connection e.g. valves with an HD-PE connection pipe. Suitable for gas and water supply or for industrial applications. The version with PE spigot end allows for assembly regardless of location and the homogenous fusion connection with all suitable FRIALEN fittings (exception of FRIALONG- and FRIASTOPP-Long couplers).

The threaded joint is according ISO 7-1.

Assembly Instructions

Usually the screw connection needs to be assembled first as assembly related torsion forces should not bear down on the connected PE pipe. The tightening forces must be introduced via the specially designed wrench area.

The fusion of the PE spigot end with a FRIALEN coupler takes place by using FRIALEN fusion process – leakproof and longitudinally strong.

The installation is according to the general installation instruction (see ”Transition Fittings with threaded connection” in ”Assembly Instructions” for ”FRIALEN-Safety Fittings for house connections and distribution pipes up to d 225”). This involves removing the oxide layer and cleaning the pipe ends.

Good reasons for using the FRIALEN-Universal Adapter UAM:

  • PE 100 spigot end – quality controlled

  • Tested and quality controlled brass quality

  • Assembly regardless of location, high degree of flexibility due to separate fusion of PE spigot end

  • May be used with all FRIALEN fittings of identical dimensions (exception of FRIALONG- and FRIASTOPP-Long couplers)

  • Universal combination option with the FRIALEN range

  • HD-PE side with spigot end for processing without holding device, designed for FRIALEN couplers

  • Pull-proof connection

  • Brass side tightly connected with PE spigot end, safe from distortion

  • Compact construction

  • Additional barcode for tracing back the fitting (Traceability-Coding).

  • Oxidic layer may be removed from PE spigot end using scraper tools
