MUN

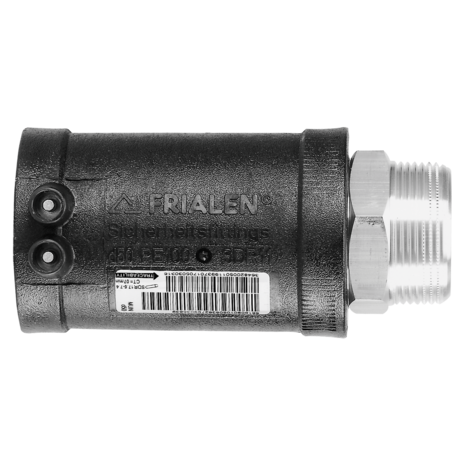

Transition fitting in HD-PE/brass with male thread

Brass pipe transition fitting MUN

  • Water
  • Maximum pressure: Water 16 bar
  • Material; PE 100 and brass [EN 12168 - CW617N, thread according to EN 10226-1]
  • Safety technology

Note:

The brass side is anchored as non-detachable and non-rotatable in PE.

Self-sealing, patented sealing geometry without elastomeric seal for utilisation in water areas.

Default: Brass, gunmetal on request.

Other thread dimensions available on request.

Go back Data sheet

PE 100 SDR 11

Maximum permissible working pressure 16 bar (water)

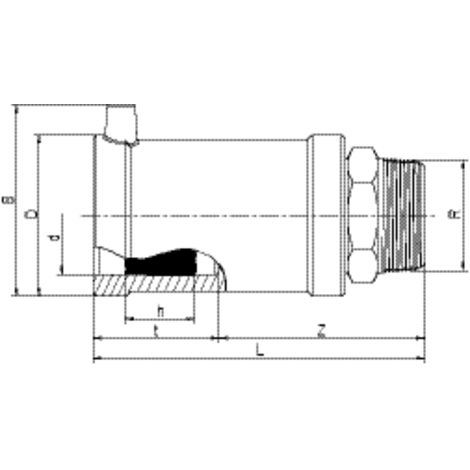

SKU d R B D h L t z Weight kg BX PU
612712 32 1´´ 61 47 24 112 42 70 0,310 20 1440
612709 32 1 1/4´´ 61 47 24 120 42 70 0,390 20 1080
612698 32 1 1/2´´ 61 47 24 121 42 70 0,450 15 810
612721 40 1´´ 70 58 30 123 46 75 0,480 20 800
612713 40 1 1/4´´ 70 58 30 126 46 77 0,460 20 800
612718 40 1 1/2´´ 70 58 30 127 46 78 0,520 20 800
612725 40 2´´ 70 58 30 132 46 86 0,680 20 600
612719 50 1´´ 80 70 30 134 53 81 0,620 15 600
612716 50 1 1/4´´ 80 70 30 136 53 83 0,610 15 600
612714 50 1 1/2´´ 80 70 30 137 53 84 0,620 15 600
612706 50 2´´ 80 70 30 147 53 94 0,760 15 600
612722 63 1 1/4´´ 94 84 35 138 53 84 0,910 10 400
612717 63 1 1/2´´ 94 84 35 137 53 84 0,890 10 400
612715 63 2´´ 94 84 35 142 53 89 0,920 10 400
612694 75 2´´ - 98 38 165 61 104 1,470 10 240
612695 75 2 1/2´´ - 98 38 167 61 106 1,490 10 240

Other thread dimensions on request

FRIALEN safety fittings can be fused with SDR11 - SDR17.6 pipes, minimum wall thickness s minimum ≥ 3 mm. Other levels of SDR can be processed on request. Please note the mandatory labels directly on the product. DVGW test marks issued: DV-7501AU2256 and DV-7501AU2257

Areas of Application

FRIALEN-Transition Fittings MUN are threaded joints as an adaptor from a metal pipe with internal thread to a HD-PE pipe. Joint on the part of HD-PE by FRIALEN-Coupler.

Assembly Instructions

The threaded component must be held with a spanner to prevent it twisting in the HD-PE component. The fusion of the HD-PE side takes place by FRIALEN-fusing – leakproof and longitudinally strong.

The installation of the brass and the HD-PE side has to be prepared according to the general installation instructions (see ”Transition Fittings with threaded connection” in ”Assembly Instructions” for ”FRIALEN-Safety Fittings for house connections and distribution pipes up to d 225”). This involves removing the oxide skin and cleaning the pipe ends.

Good reasons for using the FRIALEN-Transition Fittings MUN:

  • Compact construction

  • HD-PE side with exposed heating element for optimal heat transfer

  • Cold zones at the end to prevent the flow of molten material

  • No holding clamps required

  • Large insertion depth, extra wide fusion zones

  • Brass end permanently anchored in the HD-PE and will not distort

  • Self sealing patented sealing geometry without elastomer seal

  • Additional barcode for tracing back the fitting (Traceability-Coding)
