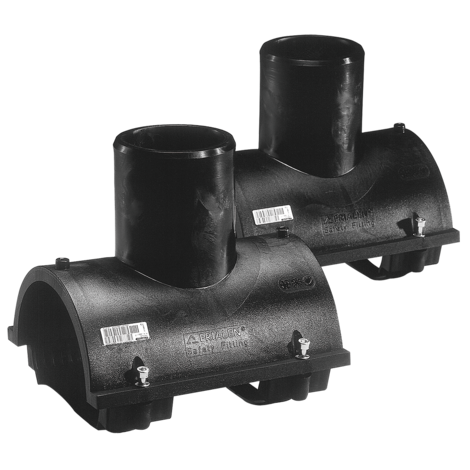

Saddle with spigot, SDR 11

Saddle with spigot SA SDR 11

Gas, water and H2
Working pressure: MOP (gas) 10 bar, PFA (water) 16 bar
Material: PE 100
Saddle component with clamp
Tapping under pressure possible
Safety technology
DVGW test mark: DV-8601AU2248 and DV-8606AU2249.

Note:

For the pressure-free tapping, there is our drilling device FWAB.

For tapping under pressure, we recommend the drilling tool from Hütz & Baumgarten (www.huetz-baumgarten.de).

If required, please contact our hotline: +49 621 486-2325.

Go back Data sheet

PE 100 SDR 11

Maximum permissible working pressure 16 bar (water) / 10 bar (gas)

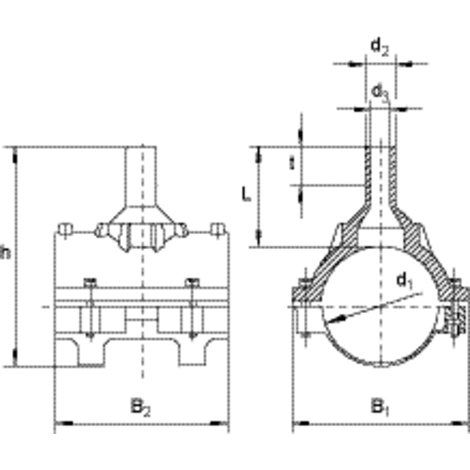

Reference	d₁	d₂	B1	B2	D1	d₃	h	L	t	Drilling Ø da	Weight [kg]	BX	PU
612757	63	32	108	118	63	22	171	100	44	20	0,340	20	360
612759	63	50	108	118	63	37	184	113	55	36	0,370	20	360
615020	75	50	110	125	75	38	167	82	55	36	0,430	15	270
615285	90	32	155	150	90	21	207	103	44	20	0,710	20	160
612819	90	63	155	150	90	50	207	103	63	46	0,740	20	160
615334	110	32	178	180	110	24	238	125	51	20	0,820	12	96
615031	110	50	178	180	110	39	245	132	60	36	0,810	12	96
612760	110	63	178	180	110	49	263	150	81	46	0,860	12	96
615411	110	90	165	190	110	70	228	115	79	65	0,970	12	96
615087	125	32	190	185	125	21	248	109	44	20	0,950	12	96
612761	125	63	190	185	125	47	248	109	63	46	0,990	12	96
615412	125	90	185	205	125	70	243	116	79	65	1,080	12	96
615584	125	110	185	205	125	86	243	116	82	84	1,150	10	80
612886	160	32	223	265	160	21	289	126	44	20	1,440	8	64
612762	160	63	223	265	160	47	303	140	63	46	1,520	6	48
615413	160	90	223	265	160	70	303	140	79	65	1,640	2	36
615739	160	110	223	265	160	86	303	140	82	84	1,770	2	36
615585	160	125	223	265	160	98	303	140	87	95	1,890	2	36
612763	180	63	240	195	180	47	291	109	63	46	1,190	6	48
615414	180	90	241	285	180	70	312	116	79	65	1,820	2	36
615948	180	110	241	285	180	86	319	136	82	84	1,960	2	36
615740	180	125	241	285	180	98	324	141	87	95	2,110	2	36
612764	200	63	250	195	200	47	311	109	63	46	1,180	5	40
612765	225	63	255	195	225	47	336	109	63	46	1,210	5	40
615415	225	90	284	279	225	70	358	130	79	65	1,960	5	40
616044	225	110	284	279	225	86	368	140	82	84	2,080	5	40
616045	225	125	284	279	225	97	374	146	87	95	2,240	4	32
616046	225	160	284	279	225	125	385	157	98	123	2,580	4	32

FRIALEN safety fittings can be fused with SDR levels 11 to 17.6. Saddle mouldings d 63 can only be fused with pipes of the SDR level 11. Minimum wall thickness s minimum ≥ 3 mm. Other levels of SDR can be processed on request. Please note the mandatory labels directly on the product. DVGW test marks issued: DV-8601AU2248 and DV-8606AU2249.

Areas of Application

The FRIALEN-Spigot Saddles SA are used for tapping of depressurised gas- and waterpipes as well as for pressure drainage. The branch line is connected with the outlet spigot by using a FRIALEN coupler UB.

Assembly Instructions

The fusion of the HD-PE distribution pipes and the house connections with FRIALEN-Spigot Saddles SA takes place by FRIALEN-fusing –leakproof and longitudinally strong.

The saddle and the outlet spigot have to be prepared according to the general installation instructions (see “Assembly Instructions” for “FRIALEN-Safety Fittings for house connections and distribution pipes up to d 225”). This involves removing the oxide skin and cleaning the pipes covered by the saddle and the coupler.

Swarfless tapping up to Ø 46 mm, from Ø 65 to Ø 123 mm extremely swarfreduced by using the tapping equipment of Hütz + Baumgarten.

For pipes without pressure spigot saddles SA can be used as a T-piece with a reduced outlet.

For tapping the main line under operating pressure, please contact our Application Engineering Department.

Good reasons for using the FRIALEN-SA:
