PE shut-off valve without flow losses
Shut-off valve FRIALOC
- Water
- Maximum pressure: 16 bar
- Material: PE 100
- Double shut-off function
- No cavities and stagnation
- No flow losses
- Maximum 14 turns for opening and closing
- DVGW test mark: DW-6210BT0171
Note:
The nominal sizes 200 to 250 have a restricted passage of d 180.
There is a suitable installation kit FBS with KlickFix for wrench size SW19 (19 mm).
Value da is the maximum tapping diameter of the external tapping device.
PE 100 SDR 11
Maximum permissible working pressure 16 bar (water)
| Reference | d | d2 | da | B | H | H1 | L | t | sw1 | Turns open/close |
Weight kg | BX | PU |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 616293 | 90 | 80 | 65 | 225 | 450 | 335 | 720 | 158 | 19 | 9 | 13,900 | 1 | 8 |
| 616294 | 110 | 80 | 84 | 225 | 450 | 335 | 720 | 164 | 19 | 9 | 14,200 | 1 | 8 |
| 616295 | 125 | 80 | 84 | 225 | 450 | 335 | 720 | 174 | 19 | 9 | 14,500 | 1 | 8 |
| 616296 | 160 | 80 | 123 | 330 | 608 | 450 | 1010 | 196 | 19 | 14 | 37,900 | 1 | 2 |
| 616297 | 180 | 80 | 123 | 330 | 608 | 450 | 1030 | 210 | 19 | 14 | 39,000 | 1 | 2 |
| 616453 | 200 | 80 | 123 | 330 | 608 | 450 | 1030 | 120 | 19 | 14 | 40,500 | 1 | 2 |
| 616298 | 225 | 80 | 123 | 330 | 608 | 450 | 1030 | 124 | 19 | 14 | 40,500 | 1 | 2 |
| 616438 | 250 | 80 | 123 | 330 | 608 | 450 | 1030 | 132 | 19 | 14 | 41,940 | 1 | 2 |

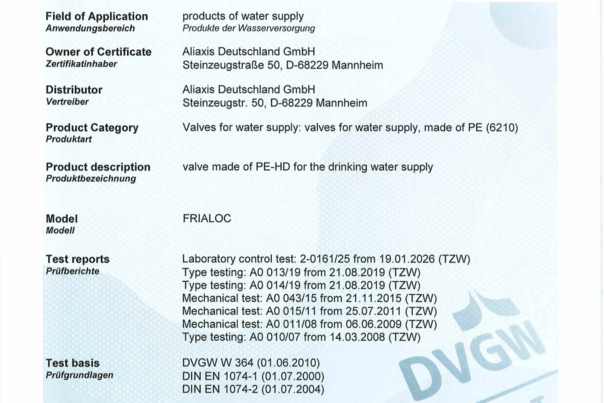

DVGW test mark issued: DW-6210BT0171. Please note the mandatory labels directly on the product.
da: max. tapping diameter of the external tapping device
Range of use / application
FRIALOC is used as shut-off valve in water piping systems. The free passage of the PE shut-off valve shows no
constrictions with regard to the connecting pipe SDR 11. Actuation is made from the street cap using the installation kit FBS. Thanks to the innovative shut-off mechanism, activation is possible with only a few turns and without major force. For further information see this data sheet page 2 or data sheet installation kit FBS No. 63/07.
Notes on processing
The FRIALOC shut-off valve made of polyethylene is homogeneously connected to the PE piping by FRIALEN fusion using FRIALEN safety fittings. This requires no gaskets, material transitions, or mechanical connections. The homogeneous joint is permanently leak-tight and friction-locked. Corrosion protection is not required. The shut-off valve can also be integrated into existing piping networks made of other materials, e.g. using flanges.
Please observe the notes on the installation of the FRIALOC shut-off valve in the FRIALEN assembly instructions for house service and supply pipings up to d 225.
Good reasons for using the FRIALOC:
- FRIALOC facilitates the completely fused and homogeneous PE piping without flanges and material transitions
- Typically PE: no corrosion, no incrustation
- Innovative two-flap mechanism for a reliable shut-off under all operating conditions
- Low-wear drive: proven in fatigue test by 2,500 dynamic test cycles under maximum pressure
- Hygiene: no stagnating water, minimised sealing area
- Corrosion-resistant metal materials
- Significant weight saving compared to metal valves
- Special contour for a pull-tight and dirt-proof connection to the protective pipe of the FRIALEN-FBS
- Low actuation forces, smooth-running even given under full differential pressure
- Few turns for opening/closing
- Optimal hydraulics thanks to a full-port passage, no constrictions
- Stable support in the ditch bottom thanks to large support area
- Length of connecting d 90-d 180 couplers designed for two fusion processes, can be reduced for compact shape
- Each single shut-off valve is inspected by the factory after mounting
- Production data are saved, archived, and can be documented via a traceability barcode
