MB SDR 11

Coupler with easily removable inner stop, SDR 11

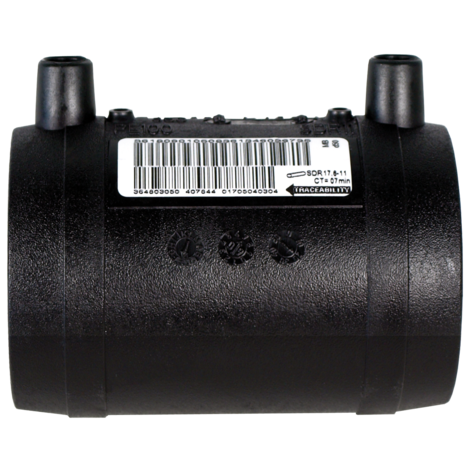

Coupler MB SDR 11 with inner stop

  • Gas, water and H2
  • Maximum pressure: Gas 10 bar; Water 16 bar
  • Material; PE 100
  • Easily removable inner stop
  • Safety technology
  • DVGW test mark: DV-8601AU2248 and DV-8606AU2249
Go back Data sheet

PE 100 SDR 11

Maximum permissible working pressure 16 bar (water) / 10 bar (gas)

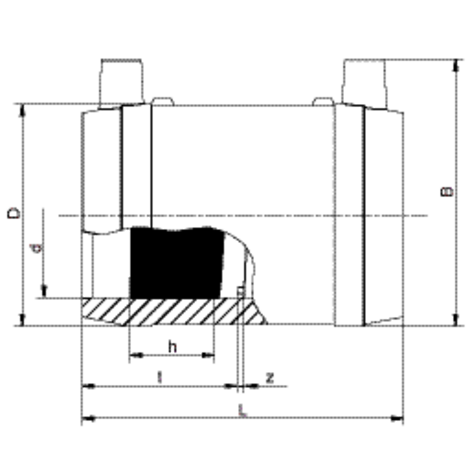

SKU d B D h L t z Weight kg BX PU
612680 20 49 33 17 60 29 2 0,040 110 3520
612681 25 54 38 17 66 32 2 0,047 90 2880
612682 32 61 45 21 78 38 2 0,064 60 1920
612683 40 71 54 23 86 42 2 0,100 40 1280
612684 50 82 68 27 98 48 2 0,150 25 800
612685 63 96 82 29 110 55 2 0,221 15 480
612686 75 110 98 32 122 60 3 0,360 50 400
612687 90 127 114 51 157 77 3 0,510 30 240
612688 110 152 137 49 159 78 3 0,710 24 192
612689 125 169 156 51 172 85 3 0,950 16 128
612690 140 185 174 52 184 91 3 1,270 12 96
612691 160 207 199 52 190 94 3 1,770 8 64

FRIALEN safety fittings can be fused with SDR11 - SDR17.6 pipes. Minimum wall thickness s minimum ≥ 3 mm. Other levels of SDR can be processed on request. Please note the mandatory labels directly on the product. DVGW test marks issued: DV-8601AU2248 and DV-8606AU2249

Areas of Application

The FRIALEN-coupler MB is used for pipe connections when laying long runs. Additional areas of application:

  • Integration of adapters into an existing pipe-line
  • Connection of pipelines with fixed or restraint points
  • Reinforcement / sealing of localised pipe damage
  • Reinforcement of pinch points

Assembly Instructions

The fusion of pipe ends with the FRIALEN-coupler MB takes place using FRIALEN-fusing – leakproof and longitudinally strong.

The pipe ends are prepared according to the general installation instructions (see “Assembly Instructions” for “FRIALEN-Safety Fittings for house connections and distribution pipes up to d 225”). This involves removing the oxide skin and cleaning the pipe ends. Please note that spigot of valves must be at least half as long as the coupler.

Good reasons for using the FRIALEN Coupler MB:

  • Large coupler depth for ease of pipe guiding (no holding clamps required)
  • Extra wide fusion zones
  • Maximum stability through great wall thickness
  • Cold zones at the front side and in the middle of the coupler
  • Exposed heating coil for direct heat transmission to the pipe
  • Small annular gap for build-up of optimum joining pressure in the fusion zone
  • Touch proof electric contacts
  • Fusion indicator for visual fusion control
  • Durable batch marking
  • Individually wrapped for dirt protection
  • Additional barcode for tracing back the fitting (Traceability-Coding)
