PE 100-RC SDR 11
Maximum permissible working pressure 16 bar (water) / 10 bar (gas)
| Reference | Diameter | SDR range | B | D | h | L | t | Weight [kg] | BX | Pallet quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| 612025 | 20 | 11 | 46 | 31 | 22 | 62 | 41 | 0,040 | 50 | 2500 |
| 612026 | 25 | 11 | 51 | 35 | 22 | 65 | 41 | 0,040 | 50 | 2500 |
| 612027 | 32 | 11 | 61 | 44 | 24 | 70 | 44 | 0,060 | 60 | 1920 |
| 612028 | 40 | 11 | 70 | 55 | 28 | 75 | 49 | 0,090 | 50 | 1600 |
| 612029 | 50 | 11 - 17,6 | 80 | 67 | 30 | 80 | 55 | 0,120 | 30 | 960 |
| 612030 | 63 | 11 - 17,6 | 96 | 84 | 31 | 88 | 63 | 0,210 | 20 | 640 |
| 612031 | 75 | 11 - 17,6 | 110 | 99 | 31 | 99 | 70 | 0,320 | 80 | 640 |
| 612032 | 90 | 11 - 17,6 | 130 | 118 | 40 | 114 | 79 | 0,530 | 16 | 288 |
| 612033 | 110 | 11 - 17,6 | 153 | 143 | 34 | 125 | 82 | 0,850 | 30 | 216 |
| 612034 | 125 | 11 - 17,6 | 168 | 163 | 42 | 135 | 87 | 1,180 | 21 | 144 |
| 612035 | 160 | 11 - 17,6 | 210 | 208 | 54 | 160 | 98 | 2,370 | 10 | 60 |
| 616183 | 180 | 11 - 17,6 | 225,5 | 224 | 46,5 | 157 | 100 | 2,800 | 6 | 48 |
| 616184 | 200 | 11 - 17,6 | 253 | 250,6 | 48 | 167 | 103 | 3,700 | 4 | 32 |
| 616185 | 225 | 11 - 17,6 | 281,6 | 279 | 48 | 184 | 114 | 3,950 | 4 | 32 |
Areas of Application

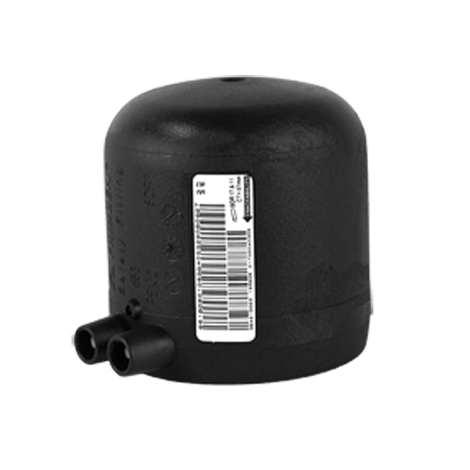

The FRIALEN End caps MV are used to close HD-PE pipe ends.
Also recommended as fused caps (d32 and d40) for the dome of FRIALEN-Pressure Tapping Tees DAA and DAP up to d63.
FRIALEN safety fittings can be fused with SDR11 - SDR17.6 pipes. Other levels of SDR can be processed on request. Please note the mandatory labels directly on the product. DVGW test marks issued: DV-8601AU2248 and DV-8606AU2249
Assembly Instructions
The fusion of a pipe end or the dome of a FRIALEN-Pressure Tapping Tee with the FRIALEN-End Cap MV takes place using FRIALEN-fusing – leakproof and longitudinally strong.
The fusion area is prepared according to the general installation instructions (see “Assembly Instructions” for “FRIALEN-Safety Fittings for house connections and distribution pipes up to d 225”). This involves removing the oxide skin and cleaning the pipe ends. Next to moulded fittings and accessories it is recommended to install a piece of pipe of 20 - 60 cm length, accordingly to the diameter, so that the pipeline can be continued later on.
Good reasons for using the FRIALEN End caps MV:
- Large coupler depth for ease of pipe guiding (no holding clamps required)
- Extra wide fusion zones
- Maximum stability through great wall thickness
- Cold zones at the front side and in the middle of the coupler
- Exposed heating coil for direct heat transmission to the pipe
- Small annular gap for build-up of optimum joining pressure in the fusion zone
- Touch proof electric contacts
- Fusion indicator for visual fusion control
- Durable batch marking
- Individually wrapped for dirt protection
- Additional barcode for tracing back the fitting (Traceability-Coding)
