KBS

Actuating linkage for ball valves

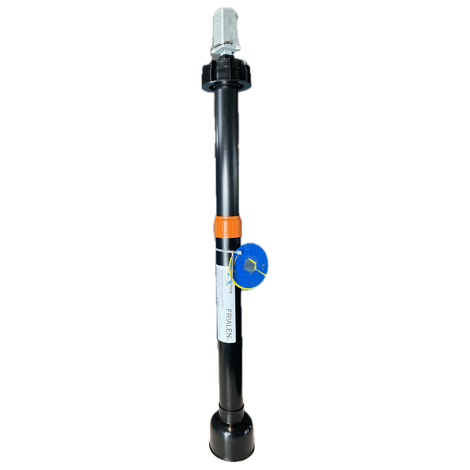

Actuating linkage KBS for ball valves

  • To operate the ball valves from the road cap downwards
  • Wrench size SW14 (14 mm) and SW30 (30 mm)
  • Telescopic bar:
    • Length fitting
    • Continuously adjustable (without tools)
  • Self-supporting
  • Corrosion free

Note:

Stable seating for the sleeve pipe bell at the nominal size of 20-50, by means of a design comprising a housing.

Go back Data sheet
SKU d RD in m BX PU lmin lmax sw1 SW Weight kg
615741 20-50 0,45 - 0,7 1 42 398 543 30 30 1,800
615957 20-50 0,6 - 1,0 1 42 548 843 14 14 2,700
615328 20-50 0,6 - 1,0 1 42 490 785 30 30 2,000
616466 20-50 1,0 - 1,5 1 42 759 1303 14 14 3,400
615330 20-50 1,0 - 1,5 1 42 799 1343 30 30 3,400
616068 20-50 1,2 - 2,0 1 42 991 1785 14 14 3,450
615329 20-50 1,2 - 2,0 1 42 1049 1843 30 30 3,650
615958 63-225 0,6 - 1,0 1 42 537 812 14 14 2,050
615310 63-225 0,6 - 1,0 1 42 490 785 30 30 3,050
616467 63-225 1,0 - 1,5 1 42 746 1272 14 14 4,150
615331 63-225 1,0 - 1,5 1 42 786 1312 30 30 4,150
616069 63-225 1,2 - 2,0 1 42 980 1754 14 14 3,600
615311 63-225 1,2 - 2,0 1 42 1038 1812 30 30 5,250

Wrench size SW1 14 mm for use as a domestic connection fitting

Other lengths available on request.

For ball valve KH d50 with the same pipe, select variant d63-225

Areas of Application

Telescopic actuating linkage for operation of the FRIALEN KHP, KH, KHW, AKHP und AKHP-TL from the street cap.

Assembly Instructions

Before fusion, the FRIALEN KHP, KH, KHW, AKHP and AKHP-TL must be aligned to suit the type of actuation intended, in order to ensure that the installation kit KBS will seat correctly.

Good reasons for using the FRIALEN-Installation kits KBS:

  • Protective pipe of polyethylene protects from intrusion of sand or soil

  • Assembly without tools

  • Self supporting in any extended position

  • Safe from being pulled out

  • Corrosion proof

  • Telescope assembly set can be adjusted even once in place and filled

  • Constructive harmonizing of the transferable torque onto the FRIALEN-Ball Valve

  • Connection pins made from stainless steel

  • Coloured marking disk for use with gas and water

  • Parts of the protective pipe are fully welded together
