AMKG

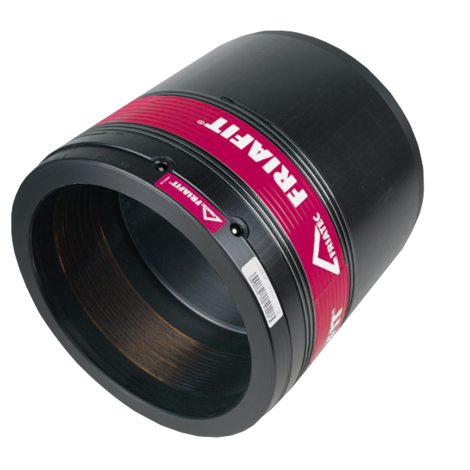

Transition coupler PE-PVC/PP

Transition coupler PE-PVC/PP AMKG

  • Continuous material transfer from HD-PE pipes (SDR 33 - 17) to PVC/PP pipes
  • HD-PE side with integrated coupler with safety technology
  • PVC/PP side as coupler with SBR lip seal with large insertion depth
Go back Data sheet

PE 100

Maximum permissible test pressure 0.5 bar to DIN EN 1610

SKU d/DN D L t Weight kg BX PU
682630 160/150 193 183,5 80 1,780 1 120
682631 225/200 270 270 100 5,820 1 32

Sewage pipe systems are high-value assets of a value which has to be maintained for a long time. Increasing demands on the public sewage system require materials which meet these criteria. HD-PE sewage pipes have been fused for many years with the FRIAFIT HD-PE sewage system tightly, frictionlocked and root-proof.

AREAS OF APPLICATIONS

The FRIAFIT transition coupler AMKG serves as seamless material transition of pipes made of HDPE (wall thicknesses of SDR 33 to SDR 17) to pipes made of PVC/PP in house service applications.

NOTES ON PROCESSING

The HD-PE end with integrated coupler is connected by FRIAFIT electrofusion - leak-tight and frictionlocked.

The pipe ends are prepared according to the general installation requirements (see “Installation instructions” for the FRIAFIT sewage system) (remove oxide layer/ clean).

A PVC/PP pipe is inserted at the slip-on coupler end. The slip-on coupler has a SBR lip seal and a large insertion depth for a secure guiding of the pipe.

GOOD REASONS FOR THE FRIAFIT TRANSITION COUPLER AMKG:

Integrated fusion coupler end

  • Guarantees leak-tight, friction-locked and rootproof connection

  • Seamless material transition when using HD-PE pipe SDR 33-SDR 17, no protrusion in the joining area, no constriction of drainage

  • Reduction of the installation time thanks to integrated fusion coupler

  • Large coupler depth for good guiding of the pipe (no fixing devices required)

  • Exposed, fixed heating coil for direct heat transfer to the pipe

  • Barcode for fully automatic fusion with HD-PE pipes from SDR 33 to SDR 17, taking into consideration the ambient temperature (temperature compensation)

Slip-on coupler end

  • Guiding of the PVC / PP pipe thanks to a large insertion depth

  • SBR lip seal according to EN 681-1

  • Standardised material transition
