ASA TL

Top-loading sewage saddle

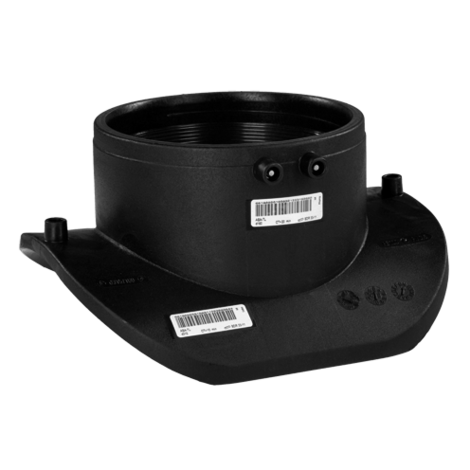

Top-loading sewage saddle ASA TL, SDR 17

  • Compact component made from HD-PE with integrated fusion coupler in the outlet (d 160)
  • For a connection for connecting pipes to existing PE main channel
  • Safety technology

Note:

Can only be used with clamping and drilling device FWFIT (Order No. 613480).

For d 200, special installation instructions must be observed when applying to SDR 33-11 pipes and for d 225-d 315 to SDR 33-26 pipes.

Go back Data sheet

PE 100

Maximum permissible working pressure 2.5 bar

SKU DN d1 d2 B1 B2 H1 H2 t Weight kg BX PU
682618 150 200 160 270 210 163 92 76 1,000 8 64
682613 150 225 160 270 230 165 94 76 1,050 8 64
682619 150 250 160 270 235 155 84 76 0,990 10 80
682614 150 280 160 270 240 143 72 76 0,990 10 80
682615 150 315 160 270 250 139 68 76 0,990 10 80
682620 150 355 160 270 255 129 58 76 0,990 10 80
682621 150 400 160 270 255 123 52 76 0,890 10 80
682616 150 450 160 270 255 117 46 76 1,020 10 80
682622 150 500/560/630 160 270 255 117 46 76 1,020 10 80

For d 200, special installation instructions must be observed when applying to SDR 33-11 pipes and for d 225-d 315 to SDR 33-26 pipes.

For installation on close-fit inliner and d 560 and d 630, please contact our hotline 0621/486-1896.

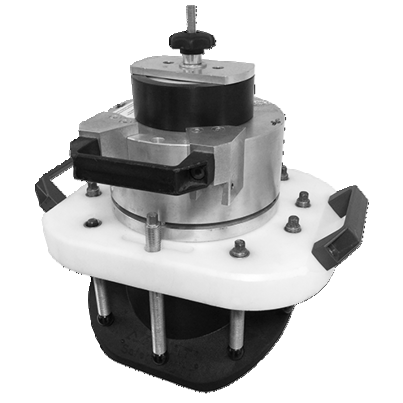

Clamping and Tapping Unit FWFIT

Sewage pipe systems are high-value assets of a value which has to be maintained for a long time. Increasing demands on the public sewage system require materials which meet these criteria. HDPE sewage pipes have been fused for many years with the FRIAFIT HDPE sewage system tightly, frictionlocked and root-proof.

Areas of Application

Domestic connections to HDPE sewers: These have up to now been carried out using spigot fittings which are connected to the pipe system with heating coil couplers. Retrospective connection to domestic pipes is only possible if the sewer pipe system is separated which is time consuming. The FRIAFIT-Sewage Saddle ASA-TL allows to establish domestic sewer connections without having to separate the existing pipeline.

Assembly Instructions

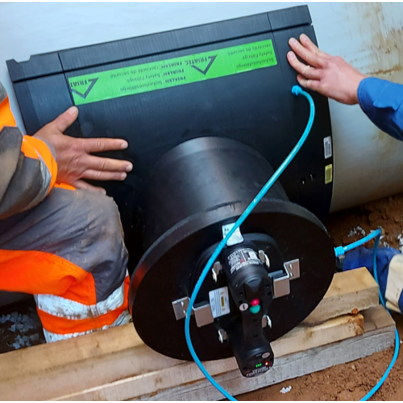

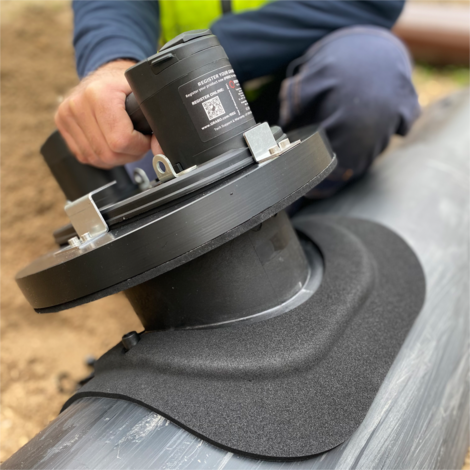

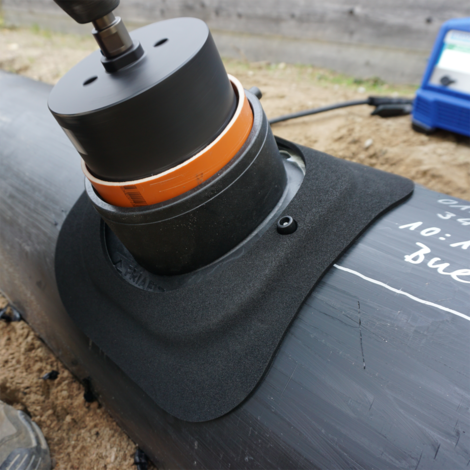

The component is fixed onto the pipe using a separately supplied unit, the Clamping and Tapping Unit FWFIT and after the fusion process the pipe can be drilled gaplessly once the cooling time has been adhered to. Please refer to the FRIAFIT-installation manual and the FWFIT-operating instructions for preparing the ASA-TL saddle for fusion.

Good reasons for using the FRIAFIT-Sewage Saddle ASA-TL

  • Economic establishing of domestic connections, particularly in areas with high density of development

  • Can be used with new installations, restoration and retrospective connections of sewer pipes

  • Minimal space required due to the compact component design. Pipe connections from HDPE are fused directly into the integrated heating coil coupler of the outlet socket

  • Direct integration of connecting pipes without misalignment or flow obstructions

  • No further components required due to integrated heating coil coupler in the outlet

  • The combined unit FWFIT for an economical finish of the sewage saddle

  • Barcode for fully automatic fusion process with HDPE pipes from SDR 33 to SDR 11 in view of the surrounding temperature (compensation of the temperature)

  • Exposed, firmly embedded heating coil for an ideal heat transfer to the pipe

  • External leak tightness (external pressure) confirmed by an independent institute
