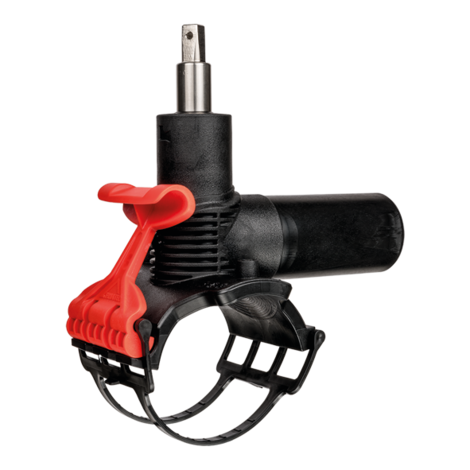

Tapping valve DAV RED SNAP, SDR 11 (closing in an anti-clockwise direction)

Tapping valve DAV RED SNAP ACW, SDR 11

  • Gas, water and H2
  • Maximum pressure: Gas 10 bar, Water 16 bar
  • Material: PE 100
  • Quick release mechanism (RED SNAP):
    • Simple and error-free assembly
    • More quality and high security
    • Save 50% of installation time
  • Integrated drill with upper and lower inner stop
  • Maximum 9 turns for opening and closing
  • Safety technology
  • DVGW test mark: DV-6611AU2255

Note:

For this purpose, there is a suitable actuating linkage DBS with KlickFix and foam rubber for wrench size SW14.

The output nominal size 63 / 40 is a solution with reducing socket MR.

Go back Data sheet
Tapping valve DAV RED SNAP, SDR 11 (closing in an anti-clockwise direction)
Tapping valve DAV RED SNAP, SDR 11 (closing in an anti-clockwise direction)
Tapping valve DAV RED SNAP, SDR 11 (closing in an anti-clockwise direction)
Tapping valve DAV RED SNAP, SDR 11 (closing in an anti-clockwise direction)

PE 100 SDR 11

Maximum permissible working pressure 16 bar (water) / 10 bar (gas)

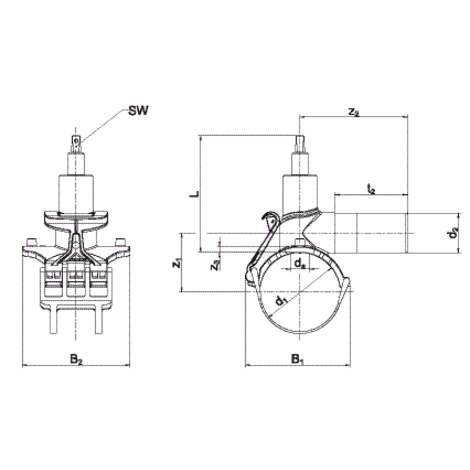

Reference d1 d2 B1 B2 L t2 z1 z2 z3 Drilling
Ø da		 Turns
open/close		 Weight kg BX PU
617127 50 32 95 136 177 86 56 125 8 30 7 1,210 24 192
617128 63 32 108 146 177 86 63 125 10 30 7 1,210 24 192
617129 63 63 108 146 177 115 63 155 10 30 7 1,330 20 160
617130 75 32 120 146 177 86 69 125 10 30 7 1,040 20 160
617131 90 32 137 170 183 86 76 125 10 30 8 1,210 12 96
617132 90 63 137 170 183 115 76 165 10 30 8 1,330 12 96
617133 110 32 152 170 183 86 86 125 10 30 8 1,230 12 96
617134 110 63 152 170 183 115 86 170 10 30 8 1,360 12 96
617135 125 32 167 170 183 86 94 125 10 30 8 1,260 12 96
617136 125 63 167 170 183 115 94 170 10 30 8 1,380 12 96
617137 140 32 170 170 183 86 101 125 10 30 8 1,230 12 96
617138 140 63 170 170 183 115 101 175 10 30 8 1,360 12 96
617139 160 32 195 186 208 86 111 130 10 30 9 1,410 10 80
617140 160 63 195 186 208 115 111 180 10 30 9 1,550 10 80
617141 180 32 203 186 208 86 121 130 10 30 9 1,440 10 80
617142 180 63 203 186 208 115 121 180 10 30 9 1,570 10 80
617143 200 32 205 186 208 86 131 130 10 30 9 1,440 8 64
617144 200 63 205 186 208 115 131 185 10 30 9 1,590 8 64
617145 225 32 214 186 208 86 144 135 10 30 9 1,470 8 64
617146 225 63 214 186 208 115 144 190 10 30 9 1,620 8 64

FRIALEN pressure tapping valves ≤ d 63 are applicable for pipes of SDR level 11 and > d 63 for pipes of SDR level 11 to 17.6. Minimum wall thickness s minimum ≥ 3 mm. Other levels of SDR can be processed on request. Please note the mandatory labels directly on the product. DVGW test mark issued: DV-6611AU2255.

Areas of Application DAV ACW RED SNAP

The FRIALEN-Pressure Tapping Valves DAV ACW RED SNAP (closing in an anti-clockwise direction) are used for branches of unpressurised and pressurised gas and water pipelines. Outlet spigots are prepared for integration of excess flow valves.

Assembly Instructions

The fusion of the HD-PE distribution pipes and the service pipes with FRIALEN-Pressure Tapping Valves takes place by FRIALEN-fusing – leakproof and longitudinally strong.

The saddle and the outlet spigot have to be prepared according to the general assembly instructions (see “Assembly Instructions” for “FRIALEN-Safety Fittings for house service and supply pipes up to d 225”). This involves removing the oxide layer and cleaning the pipe surface covered by the saddle as well as the outlet spigot and the pipe end.

The assembly of the pressure tapping valve with fast clamping mechanism takes place within seconds with the fast clamping lever RED SNAP without additional tools.

For „Open/Close” the pressure tapping valve require 8 to 9 turns, depending to the dimension and design, by using an operating key type E according to DIN 3223.

(The tapping process need less turns, because of the intermediate position of the drill in supplied condition).

Good reasons for using the FRIALEN Pressure Tapping Valves DAV ACW with fast clamping lever RED SNAP:

  • Compact part, solid injection molded body made from HD-PE

  • Simple and reliable assembly without any tool, thanks to the patented fast clamping lever RED SNAP

  • The flexible saddle compensates pipe tolerances and provides always an optimal, uniform buildup of melt pressure during the fusion

  • Fusing and tapping of the main under maximum permitted operating pressure gas/water

  • Simple start-up of the pressure tapping valve because of little tapping forces

  • No preventive measures necessary with regard to corrosion

  • Actuating spindle made from corrosion-resistant steel

  • Swarfless tapping due to rotating punching drill made of stainless steel

  • Punched-out pipe piece fits securely and permanent in the drill

  • Drill with solid upper and lower stop

  • Length of outlet spigot dimensioned for two fusion operations

  • Barcode exposed on fast clamping lever RED SNAP for easy scanning with readerwand or barcode scanner

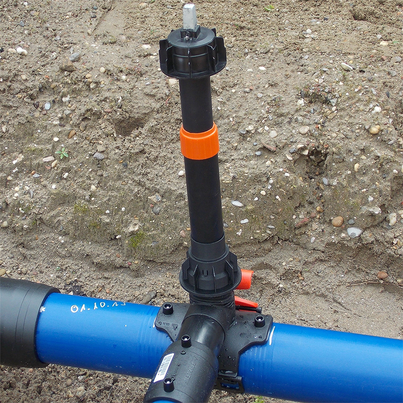

  • Installation set DBS is continuously telescopic and self supported in any extended position

  • Installation set with a sleeve tube bell with integrated locking function: connects the installation kit firmly to the DAV, unintentional release is prevented

  • A foam rubber ring in the sleeve tube bell prevents dirt from penetrating into the installation set

  • Subsequent tapping with the installation set DBS from the surface box is possible

  • High torques can be transferred because of a solid construction
