WUN V2A 90 NXT

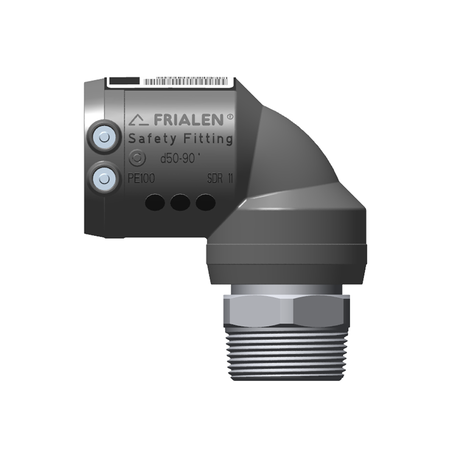

Transition elbow 90° HD-PE/Stainless steel with male thread

Transition elbow WUN V2A 90

Water
Working pressure: PFA (water) 16 bar
Thread: DIN EN 10226-1,
Wrench size: DIN 475-1
Material: Stainless-steel 1.4305 (X8CrNiS18-9)
Safety technology

Note:

Stainless Steel-nipple, non-detachable and twist-proof, over molded with HD-PE.

Safe absorption of torsional moments up to 30 Nm.

PE 100-RC SDR 11

Maximum permissible working pressure 16 bar (water)

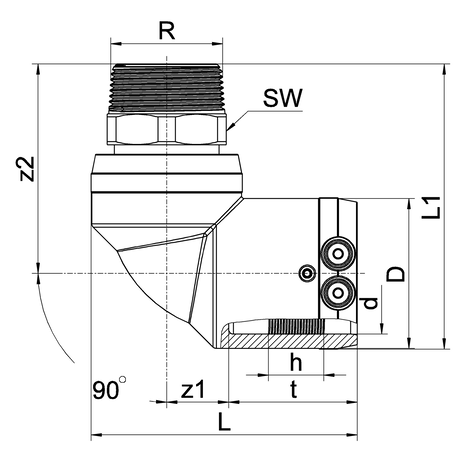

Reference	d	R	B	D	h	L	t	z	SW	Weight [kg]
617212	40	1"	67	23	97	105	20	79	46	0,340
617213	40	1 1/2"	67	23	97	110	20	84	50	0,400
617214	50	1 1/2"	64	28	112	120	26	88	50	0,460
617215	63	1 1/2"	80	31	129	138	33	98	60	0,760
617216	63	2"	80	31	129	142	33	102	60	0,726

Areas of Application

FRIALEN Transition Elbows WUN V2A 90 are screw connections for transitioning from stainless steel to HD-PE. The FRIALEN coupler is integrated into the fitting

Assembly Instructions

During assembly, the component may only be screwed into the metallic counterpart using a wrench attached to the factory-installed metallic hexagon.

The fusion of the HD-PE side takes place by FRIALEN-fusing – leakproof and longitudinally strong.

The installation of the stainless-steel side and the HD-PE side must be prepared according to the general installation instructions (see” Transition Pieces” in ” Assembly Instructions” for FRIALEN Safety Fittings for sustainable pipes for gas, water networks and industrial systems made of PE”).

Removing the oxide layer and cleaning.

Good reasons for using FRIALEN WUN V2A 90

Compact design
HD-PE saddles with Open Wire Technology for optimum heat transfer
No holding clamps required
Stainless-steel-nipple, non-detachable and twist-proof, over molded with HD-PE
Safe absorption of torsional moments up to 30 Nm
Additional barcode for tracing back the fitting (Traceability-Coding)
Suitable for use in high humidity or industrial environments
