WUN 90 NXT

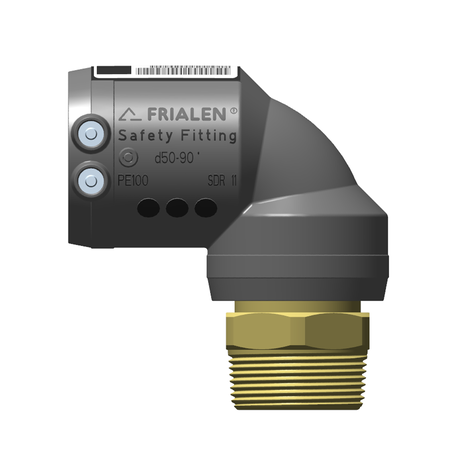

Transition elbow 90° HD-PE/brass with male thread

Transition elbow brass WUN 90

  • Water
  • Working pressure: PFA (water) 16 bar
  • Thread: DIN EN 10226-1, Wrench size according to DIN 475-1
  • Material: Lead-free brass CW724R
  • Safety technology

Note:

Brass nipple, non-detachable and twist-proof, over molded with HD-PE.

Safe absorption of torsional moments up to 30 Nm.

Transition elbow 90° HD-PE/brass with male thread
Transition elbow 90° HD-PE/brass with male thread
Transition elbow 90° HD-PE/brass with male thread
Transition elbow 90° HD-PE/brass with male thread

PE 100-RC SDR 11

Maximum permissible working pressure 16 bar (water)

Reference d R D h L t Z1 Z2 SW

Weight
[kg]
617202 32 1" 42 21 87 44 19 75 36 0,191
617203 32 1 1/2" 42 21 87 44 19 80 50 0,332
617204 40 1" 67 23 97 49 20 79 46 0,340
617205 40 1 1/4" 67 23 97 49 20 82 46 0,370
617206 40 1 1/2" 67 23 97 49 20 84 50 0,400
617207 50 1" 64 28 112 54 26 85 50 0,462
617208 50 1 1/4" 64 28 112 54 26 86 50 0,471
617209 50 1 1/2" 64 28 112 54 26 88 50 0,460
617210 63 1 1/2" 80 31 129 56 33 98 60 0,760
617211 63 2" 80 31 129 56 33 102 60 0,726

Areas of Application

The FRIALEN Transition Elbows WUN 90 are screw connections for transitioning from brass to HD-PE. The FRIALEN coupler is integrated into the fitting

Assembly Instructions

During assembly, the component may only be screwed into the metallic counterpart using a wrench attached to the factory-installed metallic hexagon.

The fusion of the HD-PE side takes place by FRIALEN-fusing – leakproof and longitudinally strong.

The installation of the brass side and the HD-PE side must be prepared according

to the general installation instructions (see” Transition Pieces” in” Assembly Instructions for FRIALEN Safety Fittings for sustainable pipes for gas, water networks and industrial systems made of PE”).

Removing the oxide layer and cleaning.

Good reasons for using FRIALEN WUN 90

  • Compact design
  • HD-PE saddles with Open Wire Technology for optimum heat transfer
  • No holding clamps required
  • Brass-nipple, non-detachable and twist-proof, over molded with HD-PE
  • Safe absorption of torsional moments up to 30 Nm
  • Additional barcode for tracing back the fitting (Traceability-Coding)
