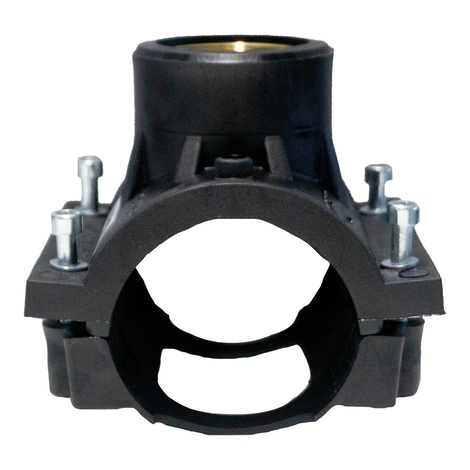

Saddle with female thread for transition HD-PE/metal

Saddle with female thread for transition HD-PE/metal

  • Operating pressure: MOP (Gas) 10 bar, PFA (Wasser) 16 bar
  • Material: PE 100-RC und brass (female thread)
  • Thread according to EN 12168 - Material CW724R
  • Thread according to ISO 228-1 for connections that do not seal in the thread. Cylindrical shape
  • Safety Technology
  • Brass (CW724R) in contact with water according to UBA recommendation
Saddle with female thread for transition HD-PE/metal
Saddle with female thread for transition HD-PE/metal
Saddle with female thread for transition HD-PE/metal
Saddle with female thread for transition HD-PE/metal
Saddle with female thread for transition HD-PE/metal
Saddle with female thread for transition HD-PE/metal
Saddle with female thread for transition HD-PE/metal
Saddle with female thread for transition HD-PE/metal

PE 100 RC SDR 11

Maximum permissible working pressure 16 bar (water) / 10 bar (gas)

Reference Diameter

SDR
range

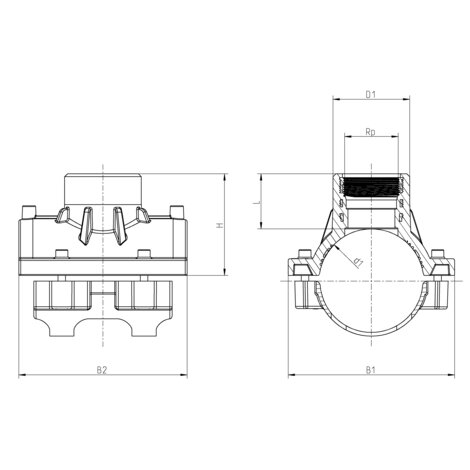

 Rp B1 B2 H L

Weight
[kg]

 BX Pallet quantity
1 614048 63 11 - 17,6 1 1/4" 108 118 81 48 0,440 20 360
614047 75 11 - 17,6 1 1/4" 110 125 117 49 0,540 20 360
614049 90 11 - 17,6 2" 156 150 103 57 0,930 26 208
614050 110 11 - 17,6 2" 178 180 109 59 1,010 20 160
614051 125 11 - 17,6 2" 190 185 116 59 1,190 20 160
614052 160 11 - 17,6 2" 230 195 129 58 1,360 10 80
614053 180 11 - 17,6 2" 235 195 125 59 1,360 10 80
614054 200 11 - 17,6 2" 252 192,5 122 61 1,350 10 80
614055 225 11 - 17,6 2" 258 192,5 120 61 1,370 10 80
1 d 63 can only be fused with pipes of the SDR level 11.

Areas of Application

FRIALEN VA saddles are used for transitioning from PE-HD to metallic materials.

They feature an internal thread with a brass insert at the outlet.

FRIALEN safety fittings are fusion-capable with PE pipes according to the specifications of the SDR pipe series on the barcode sticker/datasheet of the respective fitting. The minimum wall thicknesses specified in the standards EN 1555-1, EN 12201-1 and ISO 4437 must be observed.

Assembly Instructions

The fusion of the HD-PE distribution line and the HD-PE house connection line with FRIALEN-saddles is carried out by FRIALEN-fusing – tight and longitudinally force-locking.

The saddle and the pipo are prepared according to the general assembly requirements (see assembly instructions: „FRIALEN safety fittings for sustainable pipes for gas, water networks and industrial systems made of PE“) (remove/clean oxide layer from pipe).

Good reasons for using the FRIALEN VA:

  • Compact construction
  • Open wire technology for direct heat transmission
  • For transition from HD-PE to metal
  • Brass transition permanently and securely anchored in the HD-PE
  • Drilling area free of heating coils
  • Extra wide fusion zone
  • Additional barcode for tracing back the fitting (Traceability-Coding)
