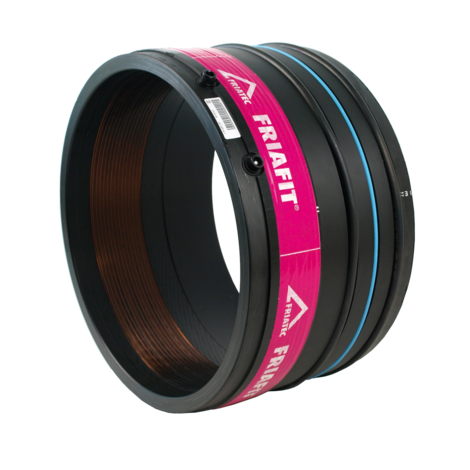

Plug-in coupler for shaft lining adapter

Plug-in coupler for shaft lining adapter AEM

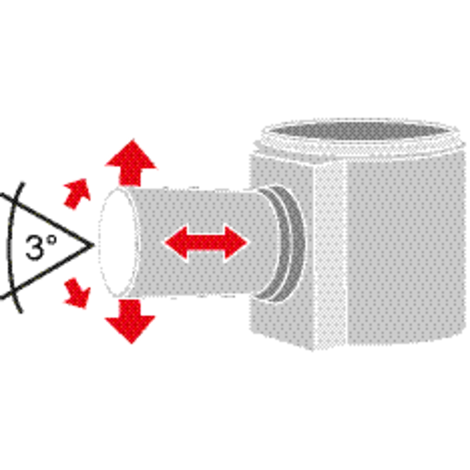

  • For the articulated connection of HD-PE pipes into ducts in accordance with DIN 4034 or DWA-A 157 together with the FRIAFIT adapter ASF/ASFL
  • With two elastomeric sealing rings as hinge for optimum compression
  • With water-swellable sealing ring Q for additional safety
  • Connection side to HD-PE pipe with open-wire technology for optimal heat transfer for use without holding devices
  • Safety technology
  • Level transition to chamber sole

Note:

Also available with NBR seals (handling of substances hazardous to water according to AwSV, application WHG e.g. grease and coalescence separators): Stock status 3.

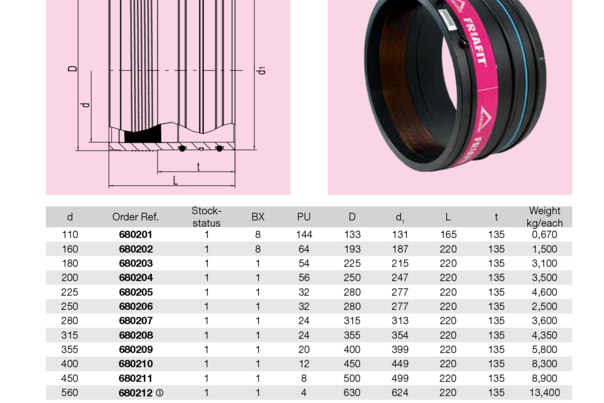

Go back Data sheet

PE 100

Maximum permissible test pressure 0.5 bar to DIN EN 1610

Reference d d1 D L t Weight kg BX PU
680201 110 131 133 165 135 0,700 8 144
680202 160 187 193 225 135 1,900 8 64
680203 180 215 225 220 135 3,100 1 54
680204 200 247 250 220 135 3,500 1 56
680205 225 277 280 220 135 4,600 1 32
680206 250 277 280 220 135 2,500 1 32
680207 280 313 315 220 135 3,600 1 32
680208 315 354 355 220 135 4,350 1 24
680209 355 399 400 220 135 5,800 1 20
680210 400 449 450 220 135 8,300 1 12
680211 450 499 500 220 135 8,900 1 8
680214 500 559 562 220 135 11,050 1 8
1 680212 560 624 630 220 135 13,400 2 4
1 680213 630 709
