FRC

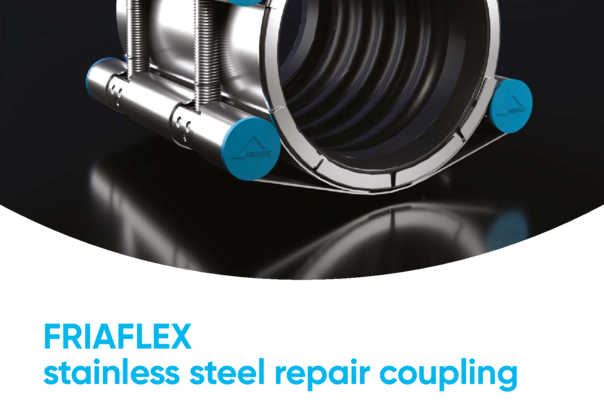

FRIAFLEX Stainless steel repair coupling
Repair coupling made of stainless steel for use on pipes of different materials (steel, cast iron, ductile iron, asbestos cement, PVC, GRP, PE-HD/PEX) in civil engineering.
- Special gasket design for reliable repair on brittle pipe materials such as cast iron
- Patented gasket design ensures largest diameter range
- Double joint and quick release for easy installation
- Stainless steel housing, lock, screws and nuts
- Gasket material EPDM
- Pressure level PN16
- Bending of the tubes up to 8°
- Temperature range -20 °C to +40 °C
Note:
When used on PE-HD/PEX pipes, our inner support liner SHVA is required.
Alternatively, we recommend restrained products such as FRIASAFE or FRIAGRIP.
Gasket EPDM, DIN-EN 681-1 / KTW / UBA / DVGW-W270
PFA/PN water maximum = 16 bar

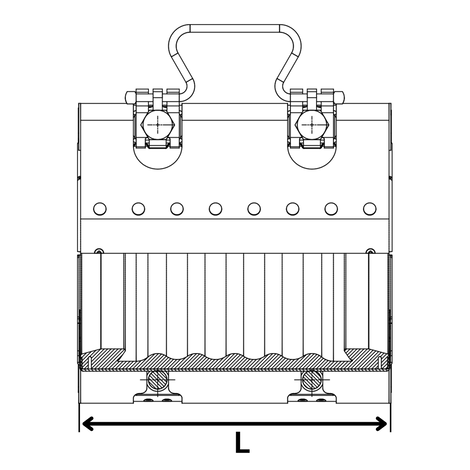

| Reference | Diameter | DN | PN | L | SW | Screws (pc. / size) | Weight [kg] | BX | Pallet quantity |
|---|---|---|---|---|---|---|---|---|---|
| 591-087-200 | 87-109 | 80 | 16 | 200 | 17 | M10 | 4,800 | 1 | 24 |
| 591-104-200 | 104-129 | 100 | 16 | 200 | 17 | M10 | 5,200 | 1 | 24 |
| 591-158-200 | 158-184 | 150 | 16 | 200 | 17 | M10 | 6,900 | 1 | 24 |
| 591-218-200 | 218-243 | 200 | 16 | 200 | 17 | M10 | 8,300 | 1 | 24 |
