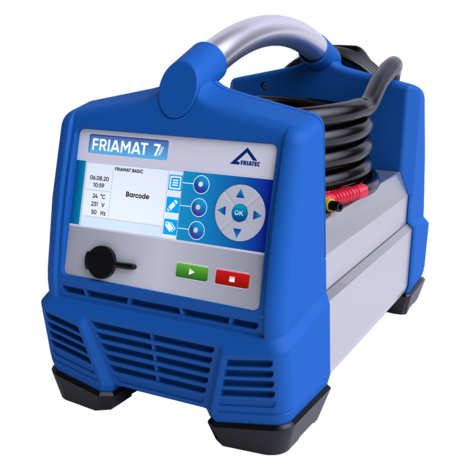

FRIAMAT 7 basic

Fusion unit without documentation function

Powerful universal fusion unit FRIAMAT 7 basic

State-of-the-art converter technology with active cooling.

  • Bright colour TFT display
  • With mini scanner, reader wand or 1D/2D scanner (2D barcodes according to ISO 12176-5)
  • Extra long fusion cable (4 m)
  • Extra long power cable (5 m)
  • Weight approx. 12.8 kg


Possibility of updating the FRIAMAT software via the USB interface by the user.

Go back Data sheet
Fusion unit without documentation function
SKU Design Weight kg
611130 With mini scanner 12,800
613130 With reader wand 12,800
614130 With 1D/2D scanner 12,800

Technical details 1)

FRIAMAT 7 basic


Universal fusion unit without documentation function

Model with mini scanner

Order no. 611130

Model with reader wand

Order no. 613130

Model with 1D/2D scanner

Order no. 614130

Maximum diameter

To d 1200 2)

Input voltage range

AC 190 V – 250 V

Frequency range

44 Hz … 66 Hz

Input current

AC 16 A max.


3,5 kW

Unit fuse

16 A slow acting

Fusion voltage

8 – 48 V

Output current

max. 110 A

Fusion current monitor

Short circuit and open circuit

Barcode type

1D: Code 2/5 interleaved

2D-Code (QR; Aztec; Data Matrix) nach ISO 12176-5



Documentation of fusion and traceability data


Data memory


Log format


Manual barcode emergency entry


FRIAMAT preCheck


Software update via USB port


Operator pass


Supervisor pass


Working temperature range

-20 °C ... +50 °C



Power cable

5 m with shaped plug

Fusion cable

4 m with fitting connector, 4 mm diameter


approx. 12,8 kg


260 x 500 x 340 mm


Enclosure rating IP 54 / Protection class I

Approval / Quality

CE, ISO 9001, WEEE Reg. No. DE 49130851, RoHS


Operating instructions, transport box

1) Subject to technical modifications.

2)With FRIAMAT 7 basic, FRIALEN and FRIAFIT safety fittings up to d 900 can be fused in the entire working temperature range from -20 °C to +50 °C.

Utilising processing fittings from other manufacturers is possible even up to d 1200 and possibly larger. However, the specific power requirement of the fitting at the prevailing processing temperature must always be clarified beforehand with the fitting manufacturer.

  • Powerful electrofusion unit with state-of-the-art converter technology and flow-optimized, active cooling.
  • High-resolution, extremely bright 4.3 “TFT color display.
  • With mini-scanner, reader wand or new 1D/2D scanner for reading 2D barcodes according to ISO 12176-5, Adapter bag, language selection, adjustable buzzer volume, manual emergency entry. Extra-long power cable (4 m) and extra-long fusion cable (5 m). Weight approx 12,8 kg.
  • Continuous monitoring of the entire fusion process and all device functions.
  • With FRIAMAT preCHECK function: The most advanced way to fuse with foresight. The FRIAMAT automatically determines whether the next fusion can be performed completely to the end.
  • The user himself can install software updates via USB interface.

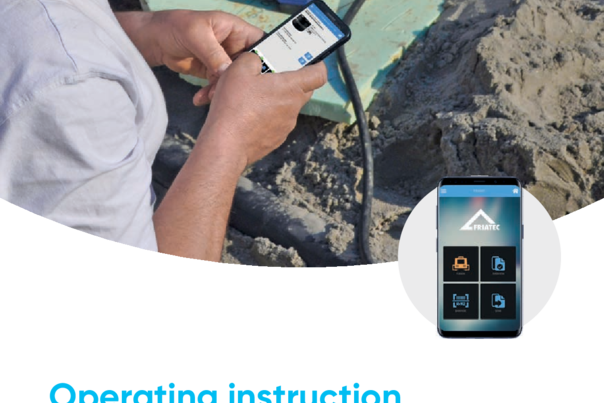

Operating instructions FRIAMAT App
1.4 MB, PDF get_app

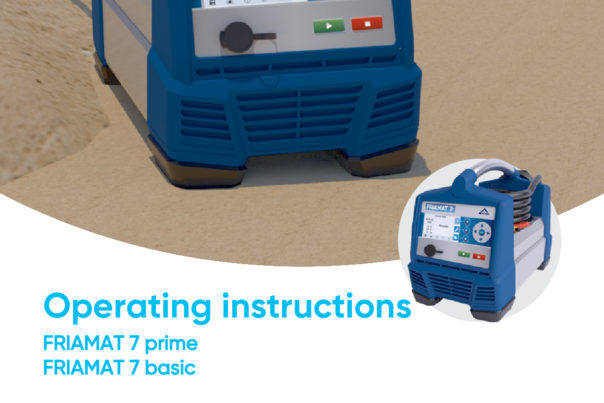

Operating instructions FRIAMAT prime and FRIAMAT basic
3.4 MB, PDF get_app

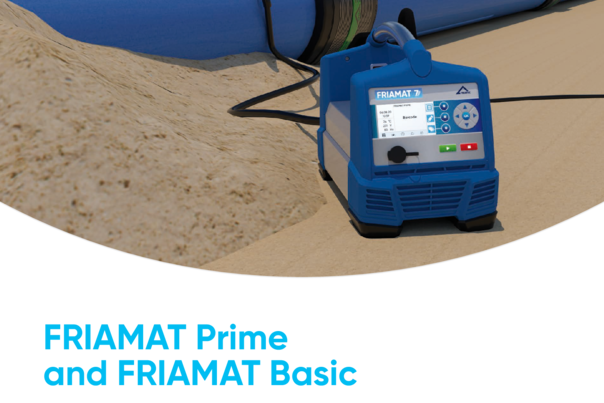

FRIAMAT prime and FRIAMAT basic
3.8 MB, PDF get_app

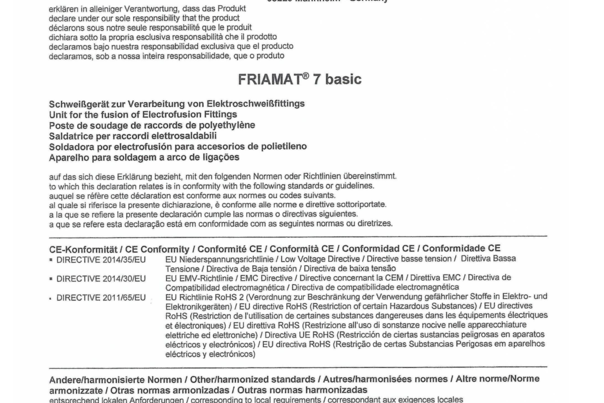

CE Conformity - FRIAMAT 7 Basic
