FRIAMAT prime eco

Fusion unit with documentation function

Powerful universal fusion unit FRIAMAT prime eco

  • Bluetooth
  • Full documentation
  • full traceability functions
  • 20,000 fusion protocols
  • Output via USB interface or app (smart phone)
  • Supervisor function
  • State-of-the-art toroidal core technology with active cooling.
  • Bright colour TFT display
  • With mini scanner, reader wand or 1D/2D scanner (2D barcodes according to ISO 12176-5)
  • Extra long fusion cable (4 m)
  • Extra long power cable (5 m)
  • Weight approx. 18.0 kg


Possibility of updating the FRIAMAT software via the USB interface by the user.

Go back Data sheet Software Update
Fusion unit with documentation function
SKU Design Weight kg
611124 With mini scanner 18,000
613124 With reader wand 18,000
614124 With 1D/2D scanner 18,000

Technical details 1)

FRIAMAT prime eco 2)


Universal electrofusion unit with traceability and documentation function and Bluetooth® interface

Model with mini scanner

Order no. 611124

Model with reader wand

Order no. 613124

Model with 1D/2D scanner

Order no. 614124

Maximum diameter

up to about d 1200 3)

Input voltage range

AC 190 V – 250 V

Frequency range

44 Hz … 66 Hz

Input current

AC 16 A max.


3,5 kW

Unit fuse

16 A slow acting

Fusion voltage

8 – 48 V

Output current

max. 110 A

Fusion current monitor

Short circuit and interruption


Code 2/5 interleaved, Code 128,

2D code (QR; Aztec; Data Matrix) according to ISO 12176-5

Documentation of fusion data


Documentation of traceability data


Operator pass

optional (Order no. 623100)

Internal protocol memory

20.000 protocols

Protocol format


Data transfer interface

USB / Bluetooth prepared

Manual barcode emergency entry


FRIAMAT preCheck


Working temperature range

-20 °C ... +50 °C



Power cable

5 m with shaped plug

Fusion cable

4 m with fitting connector, 4 mm diameter


approx. 18 kg


260 x 500 x 340 mm


IP 54 / Protection class I

Approval / Quality

CE, ISO 9001, WEEE-Reg. no. DE 49130851, RoHS, REACH


Operating manual, transport box

1) Subject to technical modifications.

2) From year of construction Q2/2021

3) With the FRIAMAT prime eco, FRIALEN and FRIAFIT safety fittings up to d 900 can be fused in the entire working temperature range of -20 °C +50 °C.

Utilising processing fittings from other manufacturers is possible even up to d 1200 and possibly larger. However, the specific power requirement of the fitting at the prevailing processing temperature must always be clarified beforehand with the fitting manufacturer.

  • High performance due to innovative toroidal transformer technology with flow-optimized, active cooling.
  • High-resolution, extremely bright 4.3 “TFT color display. Documentation of fusion and traceability data. Memory space for up to 20,000 fusion logs. CSV or PDF file or FRIATRACE format output to standard USB stick.
  • With mini-scanner, reader wand or new 1D/2D scanner for reading 2D barcodes according to ISO 12176-5, Adapter bag, language selection, adjustable buzzer volume, manual emergency entry. Extra-long power cable (4 m) and extra-long fusion cable (5 m). Weight approx 18 kg.
  • Continuous monitoring of the entire fusion process and all device functions.
  • With FRIAMAT preCHECK function: The most advanced way to fuse with foresight. The FRIAMAT automatically determines whether the next fusion can be performed completely to the end.
  • The user himself can install software updates via USB interface.
  • Integrated Bluetooth function for communication with the FRIAMAT App. At present, the use of the Bluetooth function is only permitted in the following countries: Australia - Austria - Belgium - Bulgaria - Croatia - Cyprus - Czech Republic - Denmark - Estonia - Finland - France - Germany - Great Britain - Greece - Hungary - Iceland -Israel - Ireland - Italy - Latvia - Liechtenstein - Lithuania - Luxembourg - Malta - the Netherlands - Norway - Poland - Portugal - Romania - Serbi - Slovakia- - Slovenia - Spain - Sweden - Switzerland - New Zealand

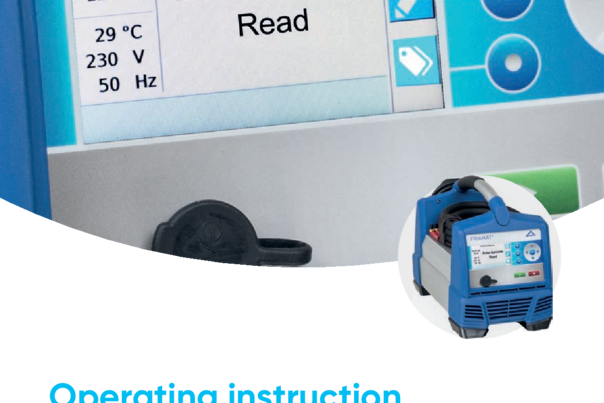

Operating instructions FRIAMAT prime eco
