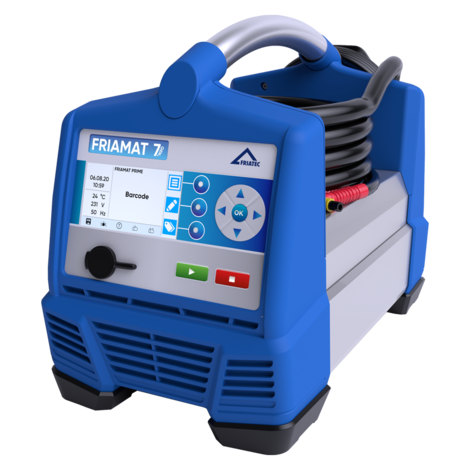

FRIAMAT 7 prime

Fusion unit with documentation function

Powerful universal fusion unit FRIAMAT 7 prime

  • Bluetooth
  • Full documentation
  • Full traceability functions
  • 20,000 fusion protocols
  • Output via USB interface or app (smart phone)
  • Supervisor function
  • State-of-the-art converter technology with active cooling.
  • Bright colour TFT display
  • With mini scanner, reader wand or 1D/2D scanner (2D barcodes according to ISO 12176-5)
  • Extra long fusion cable (4 m)
  • Extra long power cable (5 m)
  • Weight approx. 12.8 kg

Note:

Possibility of updating the FRIAMAT software via the USB interface by the user.

Go back Data sheet Software Update
Fusion unit with documentation function
SKU Design Weight kg
611134 With mini scanner 12,800
613134 With reader wand 12,800
614134 With 1D/2D scanner 12,800

Technical details 1)

FRIAMAT 7 prime

Type

Universal fusion unit with documentation and traceability function and Bluetooth interface

Model with mini scanner

Order no. 611134

Model with reader wand

Order no. 613134

Model with 1D/2D scanner

Order no. 614134

Maximum diameter

To d 1200 2)

Input voltage range

AC 190 V – 250 V

Frequency range

44 Hz … 66 Hz

Input current

AC 16 A max.

Output

3,5 kW

Unit fuse

16 A slow blow

Fusion voltage

8 – 48 V

Output current

max. 110 A

Fusion current monitor

Short circuit and open circuit

Barcode type

1D: Code 2/5 interleaved, Code 128

2D: ISO 12176-5

Interface

USB / Bluetooth® Low Energy V4.2 (CE, FCC, IC certified)

Documentation of fusion and traceability data

Yes

Data memory

20.000 protocols

Log format

PDF / CSV / FRIATRACE

Manual barcode emergency entry

Yes

FRIAMAT preCheck

Yes

Software update via USB port

Yes

Operator pass

optional (Order no. 623100)

Supervisor pass

Yes

Working temperature range

-20 °C ... +50 °C

Languages

23

Power cable

5 m with shaped plug

Fusion cable

4 m with fitting connector, 4 mm diameter

Weight

approx. 12,8 kg

Dimensions

260 x 500 x 340 mm

Housing

Enclosure rating IP 54 / Protection class I

Approval / Quality

CE, ISO 9001, WEEE Reg. No. DE 49130851, RoHS

Accessory

Operating instructions, transport box

1) Subject to technical modifications.

2) With FRIAMAT 7 prime, FRIALEN and FRIAFIT safety fittings up to d 900 can be fused in the entire working temperature range from -20 °C to +50 °C.

Utilising processing fittings from other manufacturers is possible even up to d 1200 and possibly larger. However, the specific power requirement of the fitting at the prevailing processing temperature must always be clarified beforehand with the fitting manufacturer.

  • Powerful electrofusion unit with state-of-the-art converter technology and flow-optimized, active cooling.
  • High-resolution, extremely bright 4.3 “TFT color display. Documentation of fusion and traceability data. Memory space for up to 20,000 fusion logs. CSV or PDF file or FRIATRACE format output to standard USB stick.
  • Supervisor function for individualization of device functions and presetting of operating steps.
  • With mini-scanner, reader wand or new 1D/2D scanner for reading 2D barcodes according to ISO 12176-5, Adapter bag, language selection, adjustable buzzer volume, manual emergency entry. Extra-long power cable (4 m) and extra-long fusion cable (5 m). Weight approx 12,8 kg.
  • Continuous monitoring of the entire fusion process and all device functions.
  • With FRIAMAT preCHECK function: The most advanced way to fuse with foresight. The FRIAMAT automatically determines whether the next fusion can be performed completely to the end.
  • The user himself can install software updates via USB interface.
  • Integrated Bluetooth function for communication with the FRIAMAT App. At present, the use of the Bluetooth function is only permitted in the following countries: Austria - Belgium - Bulgaria - Croatia - Cyprus - Czech Republic - Denmark - Estonia - Finland - France - Germany - Great Britain - Greece - Hongkong - Hungary - Iceland -Ireland - Italy - Latvia - Liechtenstein - Lithuania - Luxembourg - Malta - the Netherlands - Norway - Poland - Portugal - Romania - Slovakia- - Slovenia - Spain - Sweden - Switzerland
