CLAMP 180

Alignment clamp d 63 - d 180

Pipe retaining clamp CLAMP 180 with elbow adjustment (45° / 90°) and 2 clamping elements for:

  • Fittings,
  • Reductions
  • Elbow 45° and 90° in d 63, d 90, d 125 and d 180

  • Modular expansion of the pipe retaining clamp.
    • 2 additional clamping elements for utilisation as 4-fold retaining clamps for dimensions d 63, d 90, d 125 and d 180.
    • T-extension kit for pipe clamp can be utilised for T-pieces. Can be upgraded by additional clamping element to the double retaining clamp on the branching pipe.
    • Reducer half-shell set for dimensions d 110 and d 160.

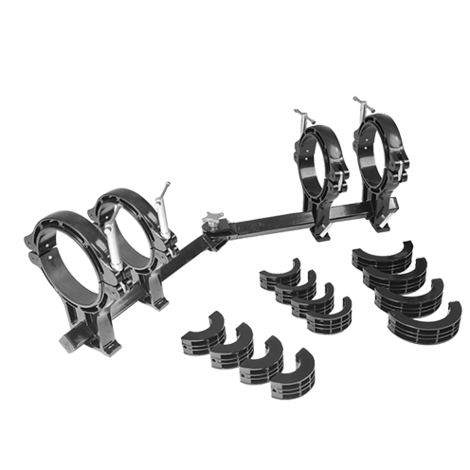

(Fig. shows design with 4 clamping elements)

Go back Data sheet
Alignment clamp d 63 - d 180
SKU Article description Diameter Area Weight kg
613021 Pipe retaining clamp with 2 clamping elements d 63, d 90, d 125, d 180 17,000
613022 Additional clamping element (1 piece.) d 63, d 90, d 125, d 180 5,500
613023 Reducer half-shell set (1 piece) d 110, d 160 3,000
613024 T extension kit d 63, d 90, d 125, d 180 11,000

Downloads

Alignment clamp d 63 - d 180
2 MB, PDF get_app
Operating instruction
