FWSS

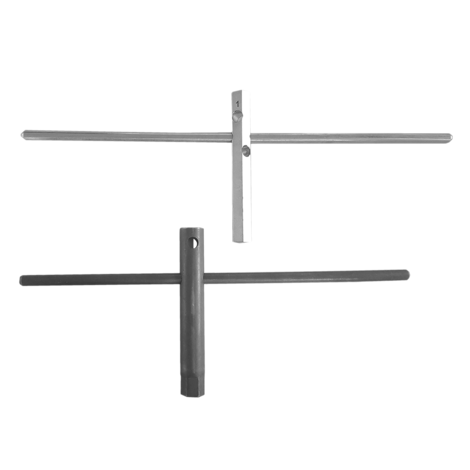

Activating key for tapping tees

For drill actuation, depending on the diameter (d1) of the FRIALEN tapping tees

  • d1: 40 - 225 with activating key SW17 mm for all DAA RED SNAP, SAB, DAA Classic d 50 - d 75 and DAP d 63.
  • d1: 90 - 315 with activating key SW19 mm for DAA TL and DAA TL RE as well as DAA Classic d 90 - d 225, and DAP d 90 - d 225.

Note

Wrench size SW17 mm is also suitable for drill actuation of all SABs.

Go back Data sheet
Activating key for tapping tees
SKU d1 SW Weight kg
613246 40-225 17 0,480
613250 90-315 19 0,358
