ABS 30

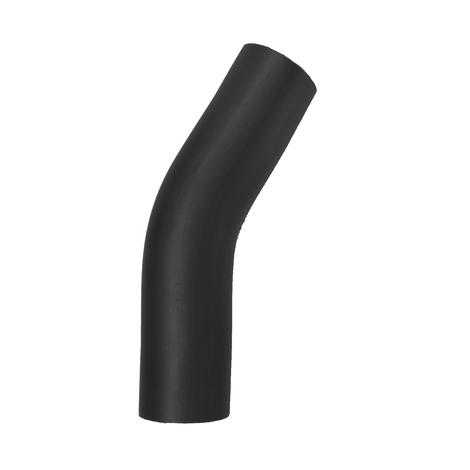

30° sewage bend (spigot fitting)
Sewage bend 30°, SDR 17 (spigot fitting) ABS 30
- HD-PE fitting for processing without holding devices with FRIAFIT couplers AM
- Black pipe colour with bright inner surface (subject to availability)
PE 80 / PE 100
Maximum permissible test pressure 0.5 bar to DIN EN 1610
| SKU | d | s | t | Z | Z | Weight kg | BX |
|---|---|---|---|---|---|---|---|
| 681009 | 110 | 6,6 | 170 | 230 | 230 | 1,050 | 1 |
| 681010 | 125 | 7,4 | 170 | 250 | 250 | 1,450 | 1 |
| 681001 | 160 | 9,1 | 170 | 280 | 280 | 2,780 | 1 |
| 681002 | 180 | 10,2 | 250 | 317 | 317 | 3,770 | 1 |
| 681003 | 225 | 12,8 | 250 | 371 | 371 | 6,870 | 1 |
| 681022 | 280 | 15,9 | 300 | 440 | 440 | 12,500 | 1 |
| 681021 | 315 | 17,9 | 300 | 480 | 480 | 17,400 | 1 |
| 681019 | 355 | 20,1 | 300 | 520 | 520 | 22,100 | 1 |
