90.82.210 | TWRMM

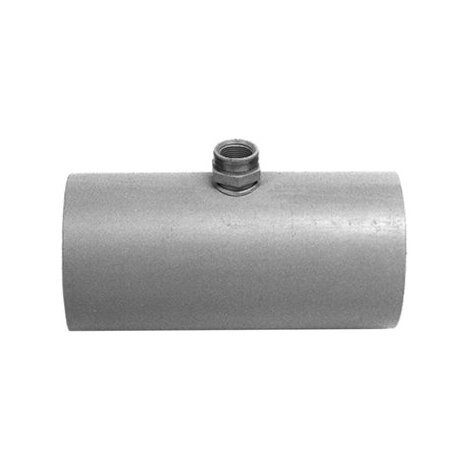

Sattel-T-Stück 90°, PP, SDR 11, Innengewindemuffe 1 1/2"
- zum Heizelementstumpf- und Heizwendelschweißen
- geschweißt
- Anschluss: Innengewindemuffe 1 1/2"
- Betriebsdruck-Minderungsfaktor (fB) = 0,45
- ab d180 mit Extrusionsverstärkung um die Innengewindemuffe

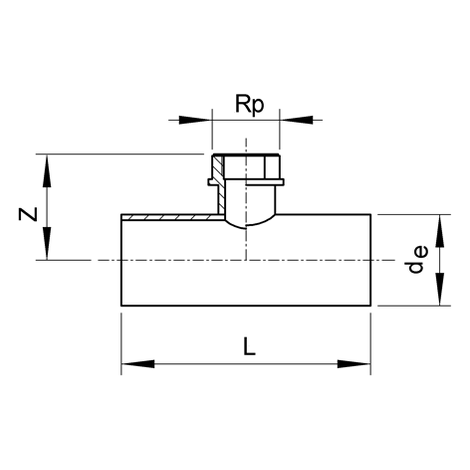

| Artikel | d1 | Rp | L | Z | Gewicht [kg] | VE |
|---|---|---|---|---|---|---|
| 900782210 | 75 | 1 1/2" | 260 | 91 | 1,070 | 1 |
| 900982210 | 90 | 1 1/2" | 340 | 97 | 1,400 | 1 |
| 901182210 | 110 | 1 1/2" | 340 | 105 | 1,700 | 1 |
| 901282210 | 125 | 1 1/2" | 340 | 122 | 2,030 | 1 |
| 901482210 | 140 | 1 1/2" | 340 | 130 | 2,370 | 1 |
| 901682210 | 160 | 1 1/2" | 370 | 140 | 3,080 | 1 |
| 901882210 | 180 | 1 1/2" | 370 | 150 | 3,700 | 1 |
| 902082210 | 200 | 1 1/2" | 470 | 160 | 5,400 | 1 |
| 902282210 | 225 | 1 1/2" | 440 | 177 | 6,270 | 1 |
| 902582210 | 250 | 1 1/2" | 440 | 185 | 7,540 | 1 |
| 902882210 | 280 | 1 1/2" | 440 | 200 | 9,270 | 1 |
| 903182210 | 315 | 1 1/2" | 440 | 217 | 11,550 | 1 |
| 903582210 | 355 | 1 1/2" | 490 | 237 | 16,040 | 1 |
| 904082210 | 400 | 1 1/2" | 540 | 260 | 22,170 | 1 |
| 904582210 | 450 | 1 1/2" | 540 | 285 | 27,900 | 1 |
| 905082210 | 500 | 1 1/2" | 540 | 310 | 34,250 | 1 |
