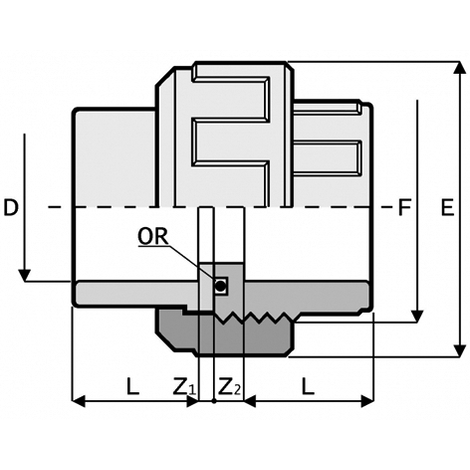

| Artikel | PN | D | E | F | L | Z1 | Z2 | Gewicht [kg] | VE |
|---|---|---|---|---|---|---|---|---|---|
| 1RBO116000 | 16 | 16 | 31 | 3/4" | 11 | 3 | 10 | 0,030 | 700 |
| 1RBO120000 | 16 | 20 | 42 | 1" | 16 | 3 | 10 | 0,050 | 350 |
| 1RBO125000 | 16 | 25 | 52 | 1 1/4" | 19 | 3 | 10 | 0,070 | 200 |
| 1RBO132000 | 16 | 32 | 59 | 1 1/2" | 22 | 3 | 10 | 0,100 | 140 |
| 1RBO140000 | 16 | 40 | 72 | 2" | 26 | 3 | 12 | 0,160 | 80 |
| 1RBO150000 | 16 | 50 | 79 | 2 1/4" | 31 | 3 | 14 | 0,220 | 50 |
| 1RBO163000 | 16 | 63 | 96 | 2 3/4" | 38 | 3 | 18 | 0,370 | 30 |
| 1RBO175000L | 10 | 75 | 120 | 3 1/2" | 44 | 3 | 18 | 0,560 | 15 |
| 1RBO190000L | 10 | 90 | 135 | 4" | 51 | 5 | 18 | 0,750 | 12 |
