PE 34.091.36 | RDE-SDR17

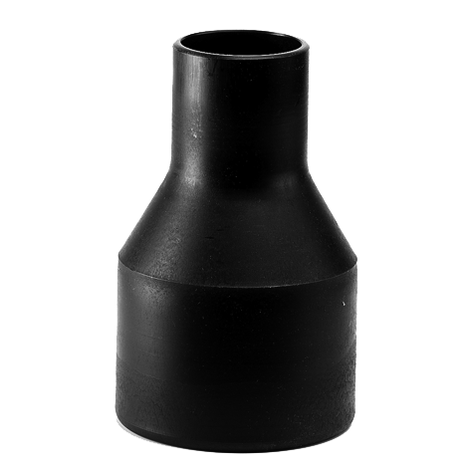

Reduktion, PE 100, SDR 17, lang, zentrisch

Zurück Datenblatt

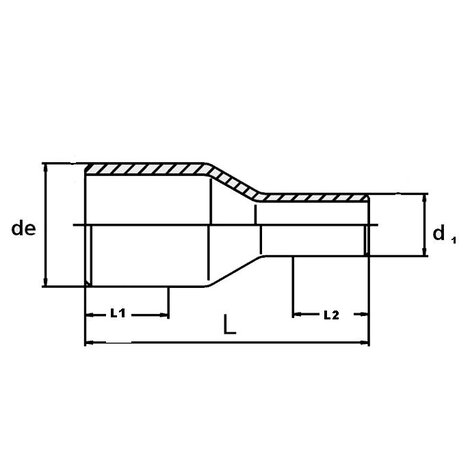

Artikel	de	d₁	L	l1	l2	Gewicht kg	VE
73409136063032	63	32	142	63	46	0,800	14
73409136063050	63	50	152	64	58	0,095	10
73409136075063	75	63	166	70	63	0,152	20
73409136090063	90	63	182	79	63	0,241	20
73409136090075	90	75	185	80	63	0,238	20
73409136110075	110	75	183	83	73	0,315	16
73409136110090	110	90	185	83	80	0,382	14
73409136125063	125	63	200	90	68	0,467	15
73409136125090	125	90	200	90	81	0,460	9
73409136125110	125	110	200	91	90	0,500	9
73409136140090	140	90	235	112	86	0,630	12
73409136140110	140	110	237	114	91	0,690	12
73409136140125	140	125	235	117	96	0,740	14
73409136160090	160	90	254	109	84	0,820	10
73409136160110	160	110	254	110	89	0,890	10
73409136160125	160	125	254	110	95	0,960	10
73409136160140	160	140	254	110	106	1,010	10
73409136180090	180	90	244	105	80	1,040	10
73409136180110	180	110	275	124	93	1,190	8
73409136180125	180	125	250	105	87	1,201	8
73409136180140	180	140	277	123	114	1,201	8
73409136180160	180	160	279	126	125	1,450	8
73409136200140	200	140	279	123	114	1,590	6
73409136200160	200	160	278	122	124	1,650	6
73409136200180	200	180	290	133	114	1,980	1
73409136225160	225	160	275	125	118	2,175	4
73409136225180	225	180	275	125	118	2,140	4
73409136225200	225	200	272	126	120	2,240	4
73409136250160	250	160	308	151	98	2,480	3
73409136250180	250	180	316	153	105	2,850	6
73409136250200	250	200	325	154	113	3,969	2
73409136250225	250	225	330	155	122	4,368	2
73409136280200	280	200	330	142	116	3,880	2
73409136280225	280	225	335	140	124	4,100	2
73409136280250	280	250	340	139	134	4,415	2
73409136315225	315	225	371	152	125	5,290	2
73409136315250	315	250	367	151	133	5,635	2
73409136315280	315	280	369	150	140	5,950	4
