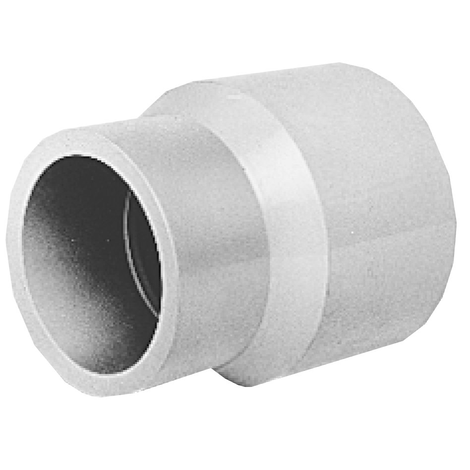

22.091.03 | RIA
Reduktion, ABS, lang
- Anschluss: Klebemuffe/Klebemuffe-Klebestutzen

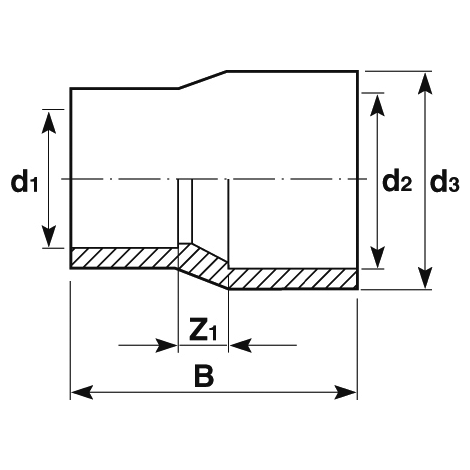

| Artikel | d1 | d2 | PN | B | d3 | Z1 | Gewicht [kg] | VE |
|---|---|---|---|---|---|---|---|---|
| 72209103025016 | 16 | 20 | 10 | 37 | 25 | 6 | 0,010 | 126 |
| 72209103032020 | 20 | 25 | 10 | 42 | 32 | 6 | 0,020 | 100 |
| 72209103040025 | 25 | 32 | 10 | 50 | 40 | 8 | 0,030 | 720 |
| 72209103050032 | 32 | 40 | 10 | 60 | 50 | 11 | 0,040 | 300 |
| 72209103063040 | 40 | 50 | 10 | 71 | 63 | 11 | 0,040 | 300 |
| 72209103075050 | 50 | 63 | 10 | 85 | 75 | 14 | 0,120 | 100 |
| 72209103090063 | 63 | 75 | 10 | 98 | 90 | 13 | 0,120 | 100 |
| 72209103110075 | 75 | 90 | 10 | 115 | 110 | 16 | 0,120 | 100 |
| 72209103125090 | 90 | 110 | 10 | 140 | 125 | 21 | 0,480 | 24 |
| 72209103140110 | 110 | 125 | 10 | 156 | 140 | 20 | 0,720 | 19 |
| 72209103160125 | 125 | 140 | 10 | 170 | 160 | 20 | 1,030 | 6 |
| 72209103200140 | 140 | 160 | 10 | 193 | 200 | 23 | 2,180 | 6 |
| 72209103225160 | 160 | 200 | 10 | 237 | 225 | 41 | 2,530 | 4 |
