PE 34.010.31 | GDE-SDR11

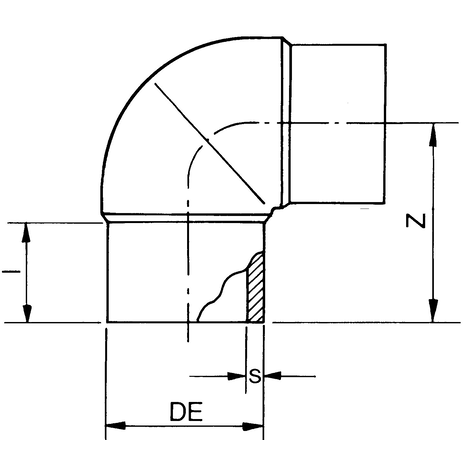

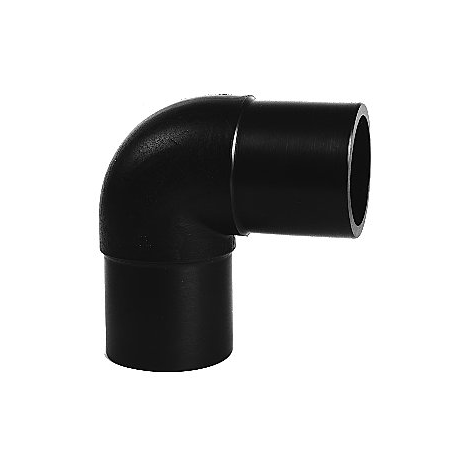

Winkel 90°, PE 100, SDR 11, lang
- zum Heizelementstumpf- und Heizwendelschweißen
- formgespritzt
| Artikel | de | l | Z | Gewicht kg |
VE |
|---|---|---|---|---|---|
| 73401031020 | 20 | 52 | 73 | 0,021 | 1 |
| 73401031025 | 25 | 56 | 80 | 0,034 | 1 |
| 73401031032 | 32 | 48 | 79 | 0,065 | 1 |
| 73401031040 | 40 | 52 | 92 | 0,097 | 1 |
| 73401031050 | 50 | 59 | 107 | 0,153 | 1 |
| 73401031063 | 63 | 69 | 131 | 0,265 | 1 |
| 73401031075 | 75 | 76 | 153 | 0,415 | 1 |
| 73401031090 | 90 | 83 | 173 | 0,645 | 1 |
| 73401031110 | 110 | 84 | 195 | 1,070 | 1 |
| 73401031125 | 125 | 92 | 216 | 1,500 | 1 |
| 73401031140 | 140 | 96 | 237 | 2,275 | 1 |
| 73401031160 | 160 | 103 | 262 | 3,364 | 1 |
| 73401031180 | 180 | 115 | 294 | 4,440 | 1 |
| 73401031200 | 200 | 122 | 317 | 6,075 | 1 |
| 73401031225 | 225 | 131 | 351 | 8,030 | 1 |
| 73401031250 | 250 | 133 | 382 | 10,560 | 1 |
| 73401031280 | 280 | 153 | 432 | 15,030 | 1 |
| 73401031315 | 315 | 154 | 471 | 21,360 | 1 |
