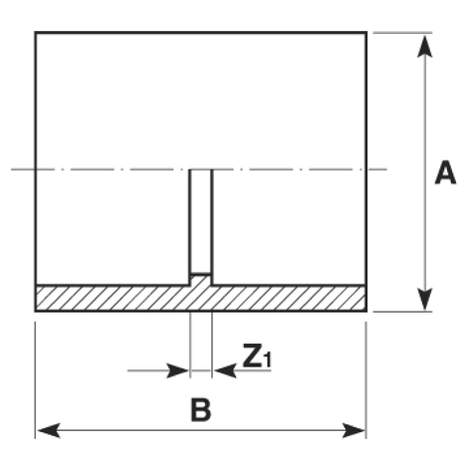

| Artikel | d | PN | A | B | Z1 | Gewicht kg |
VE |
|---|---|---|---|---|---|---|---|
| 72209101016 | 16 | 10 | 21 | 31 | 3 | 0,010 | 700 |
| 72209101020 | 20 | 10 | 25 | 37 | 3 | 0,010 | 450 |
| 72209101025 | 25 | 10 | 31 | 42 | 2 | 0,010 | 400 |
| 72209101032 | 32 | 10 | 41 | 49 | 3 | 0,030 | 150 |
| 72209101040 | 40 | 10 | 50 | 58 | 4 | 0,050 | 70 |
| 72209101050 | 50 | 10 | 62 | 68 | 4 | 0,080 | 80 |
| 72209101063 | 63 | 10 | 78 | 81 | 4 | 0,150 | 40 |
| 72209101075 | 75 | 10 | 88 | 93 | 3 | 0,230 | 38 |
| 72209101090 | 90 | 10 | 107 | 108 | 4 | 0,380 | 40 |
| 72209101110 | 110 | 10 | 126 | 131 | 7 | 0,690 | 26 |
| 72209101125 | 125 | 10 | 146 | 149 | 7 | 1,040 | 14 |
| 72209101140 | 140 | 10 | 171 | 163 | 7 | 1,390 | 8 |
| 72209101160 | 160 | 10 | 182 | 184 | 8 | 1,660 | 6 |
| 72209101200 | 200 | 10 | 223 | 220 | 8 | 2,390 | 3 |
| 72209101225 | 225 | 10 | 260 | 250 | 11 | 3,470 | 2 |
| 72209101250 | 250 | 10 | 286 | 272 | 10 | 5,760 | 1 |
| 72209101315 | 315 | 8 | 355 | 339 | 11 | 9,780 | 1 |
