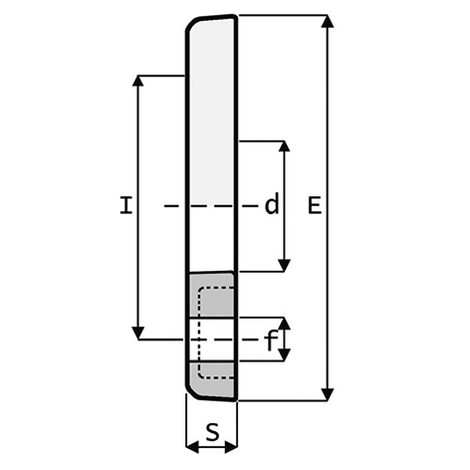

| Artikel | d | DN | D | E | f | I | S | Schrauben | Gewicht kg |
VE |
|---|---|---|---|---|---|---|---|---|---|---|
| 1RFL120000 | 28.0 | 15 | 20 | 96 | 14 | 65 | 11 | 4 | 0,070 | 250 |
| 1RFL125000 | 34.0 | 20 | 25 | 107 | 14 | 75 | 12 | 4 | 0,085 | 200 |
| 1RFL132000 | 42.0 | 25 | 32 | 117 | 14 | 85 | 14 | 4 | 0,120 | 150 |
| 1RFL140000 | 51.0 | 32 | 40 | 143 | 18 | 100 | 15 | 4 | 0,190 | 60 |
| 1RFL150000 | 62.0 | 40 | 50 | 153 | 18 | 110 | 16 | 4 | 0,225 | 65 |
| 1RFL163000 | 78.0 | 50 | 63 | 165 | 18 | 125 | 18 | 4 | 0,295 | 50 |
| 1RFL175000 | 92.0 | 65 | 75 | 188 | 18 | 145 | 19 | 4 | 0,390 | 35 |
| 1RFL190000 | 110.0 | 80 | 90 | 203 | 18 | 160 | 20 | 8 | 0,460 | 30 |
| 1RFL111000 | 132.0 | 100 | 110 | 222 | 18 | 180 | 22 | 8 | 0,515 | 20 |
| 1RFL112500 | 149.0 | 125 | 125 | 250 | 18 | 210 | 26 | 8 | 0,950 | 16 |
| 1RFL115000 | 167.0 | 125 | 140 | 250 | 18 | 210 | 26 | 8 | 0,813 | 25 |
| 1RFL117000 | 190.0 | 150 | 160 | 285 | 22 | 240 | 28 | 8/12 | 1,285 | 20 |
| 1RFL121000 | 235.0 | 200 | 200 | 341 | 22 | 295 | 30 | 8/12 | 2,045 | 10 |
| 1RFL123000 | 253.0 | 200 | 225 | 341 | 22 | 295 | 30 | 8/12 | 1,950 | 10 |
