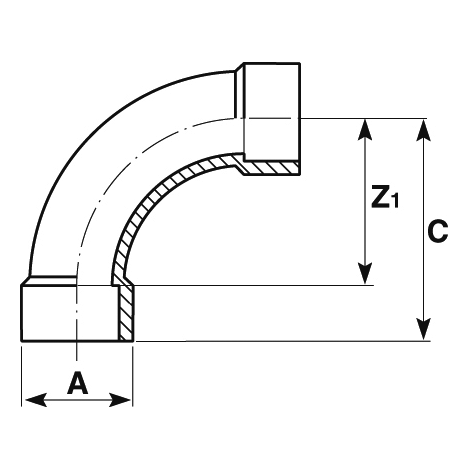

| Artikel | d | PN | A | C | Z1 | Gewicht [kg] | VE |
|---|---|---|---|---|---|---|---|
| 72200001020 | 20 | 10 | 26 | 57 | 40 | 0,020 | 200 |
| 72200001025 | 25 | 10 | 33 | 69 | 50 | 0,040 | 100 |
| 72200001032 | 32 | 10 | 41 | 87 | 64 | 0,080 | 70 |
| 72200001040 | 40 | 10 | 51 | 107 | 80 | 0,140 | 25 |
| 72200001050 | 50 | 10 | 62 | 132 | 100 | 0,520 | 16 |
| 72200001063 | 63 | 10 | 78 | 165 | 126 | 0,520 | 16 |
| 72200001075 | 75 | 10 | 93 | 195 | 150 | 0,810 | 6 |
| 72200001090 | 90 | 10 | 111 | 234 | 180 | 1,460 | 8 |
| 72200001110 | 110 | 10 | 140 | 284 | 220 | 2,580 | 4 |
