23.454.2X | TKDIC-T
3-Wege-Kugelhahn d 16 - 63, TKD DualBlock, PVC-C, T-Bohrung, Klebemuffe
- Bohrung: T-Bohrung
- Anschluss: Klebemuffe
- radial ein- und ausbaubar
- mit gesicherten Überwurfmuttern
EPDM 23.454.2

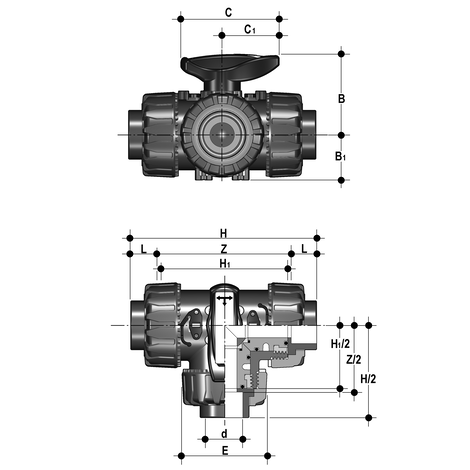

| Artikel | d | DN | PN | B | B1 | C | C1 | E | H | H1 | L | Z | Gewicht kg |
VE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 123454020016 | 16 | 10 | 16 | 54 | 29 | 67 | 40 | 54 | 118 | 80 | 14 | 90 | 0,310 | 1 |
| 123454020040 | 40 | 32 | 16 | 82,5 | 46 | 108 | 64 | 86 | 188,5 | 131 | 26 | 136,5 | 1,652 | 2 |
| 123454020020 | 20 | 15 | 16 | 54 | 29 | 67 | 40 | 54 | 118 | 80 | 16 | 86 | 0,259 | 6 |
| 123454020025 | 25 | 20 | 16 | 65 | 34,5 | 85 | 49 | 65 | 145 | 100 | 19 | 107 | 0,715 | 4 |
| 123454020032 | 32 | 25 | 16 | 69,5 | 39 | 85 | 49 | 73 | 160 | 110 | 22 | 116 | 1,087 | 1 |
| 123454020050 | 50 | 40 | 16 | 89 | 52 | 108 | 64 | 98 | 219 | 148 | 31 | 157 | 2,079 | 1 |
| 123454020063 | 63 | 50 | 16 | 108 | 62 | 134 | 76 | 122 | 266,5 | 179 | 38 | 190,5 | 2,800 | 1 |
FKM 23.454.2
| Artikel | d | DN | PN | B | B1 | C | C1 | E | H | H1 | L | Z | Gewicht kg |
VE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 123454021016 | 16 | 10 | 16 | 54 | 29 | 67 | 40 | 54 | 118 | 80 | 14 | 90 | 0,310 | 1 |
| 123454021020 | 20 | 15 | 16 | 54 | 29 | 67 | 40 | 54 | 118 | 80 | 16 | 86 | 0,310 | 1 |
| 123454021025 | 25 | 20 | 16 | 65 | 34,5 | 85 | 49 | 65 | 145 | 100 | 19 | 107 | 0,779 | 1 |
| 123454021032 | 32 | 25 | 16 | 69,5 | 39 | 85 | 49 | 73 | 160 | 110 | 22 | 116 | 0,779 | 1 |
| 123454021040 | 40 | 32 | 16 | 82,5 | 46 | 108 | 64 | 86 | 188,5 | 131 | 26 | 136,5 | 1,275 | 1 |
| 123454021050 | 50 | 40 | 16 | 89 | 52 | 108 | 64 | 98 | 219 | 148 | 31 | 157 | 1,660 | 1 |
| 123454021063 | 63 | 50 | 16 | 108 | 62 | 134 | 76 | 122 | 266,5 | 179 | 38 | 190,5 | 3,520 | 1 |
