27.447.8X | VKDOM

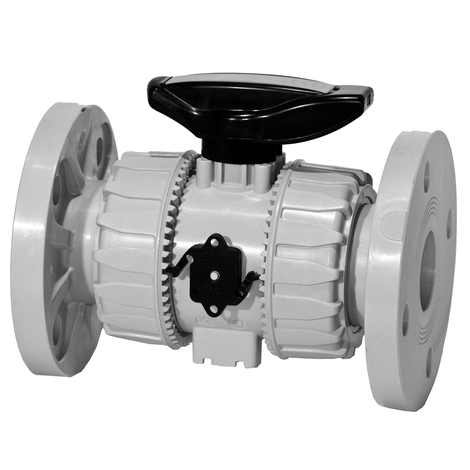

2-Wege-Kugelhahn d 20 - 63, VKD DualBlock, PP, Festflansch
- Anschluss: beidseitiger PP-Festflansch
- radial ein- und ausbaubar
- mit gesicherter Überwurfmutter
- Dichtung: PTFE/EPDM oder PTFE/FKM
EPDM 27.447.8

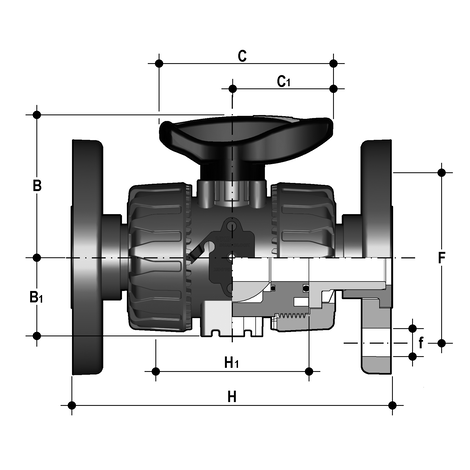

| Artikel | d | DN | PN | B | B1 | C | C1 | F | f | H | H1 | U | Gewicht kg |
VE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 127447080020 | 20 | 15 | 10 | 54 | 29 | 67 | 40 | 65 | 14 | 130 | 65 | 4 | 0,425 | 12 |
| 127447080025 | 25 | 20 | 10 | 65 | 35 | 85 | 49 | 75 | 14 | 150 | 70 | 4 | 0,566 | 8 |
| 127447080032 | 32 | 25 | 10 | 70 | 39 | 85 | 49 | 85 | 14 | 160 | 78 | 4 | 0,742 | 8 |
| 127447080040 | 40 | 32 | 10 | 83 | 46 | 108 | 64 | 100 | 18 | 180 | 88 | 4 | 1,213 | 4 |
| 127447080050 | 50 | 40 | 10 | 89 | 52 | 108 | 64 | 110 | 18 | 200 | 93 | 4 | 1,501 | 1 |
| 127447080063 | 63 | 50 | 10 | 108 | 62 | 134 | 76 | 125 | 18 | 230 | 111 | 4 | 2,300 | 1 |
FKM 27.447.8
| Artikel | d | DN | PN | B | B1 | C | C1 | F | f | H | H1 | U | Gewicht kg |
VE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 127447081020 | 20 | 15 | 10 | 54 | 29 | 67 | 40 | 65 | 14 | 130 | 65 | 4 | 0,570 | 1 |
| 127447081025 | 25 | 20 | 10 | 65 | 35 | 85 | 49 | 75 | 14 | 150 | 70 | 4 | 0,845 | 8 |
| 127447081032 | 32 | 25 | 10 | 70 | 39 | 85 | 49 | 85 | 14 | 160 | 78 | 4 | 0,742 | 8 |
| 127447081040 | 40 | 32 | 10 | 83 | 46 | 108 | 64 | 100 | 18 | 180 | 88 | 4 | 1,213 | 4 |
| 127447081050 | 50 | 40 | 10 | 89 | 52 | 108 | 64 | 110 | 18 | 200 | 93 | 4 | 1,577 | 1 |
| 127447081063 | 63 | 50 | 10 | 108 | 62 | 134 | 76 | 125 | 18 | 230 | 111 | 4 | 1,577 | 1 |
