221.447.9X | VKDOV/CP-NC

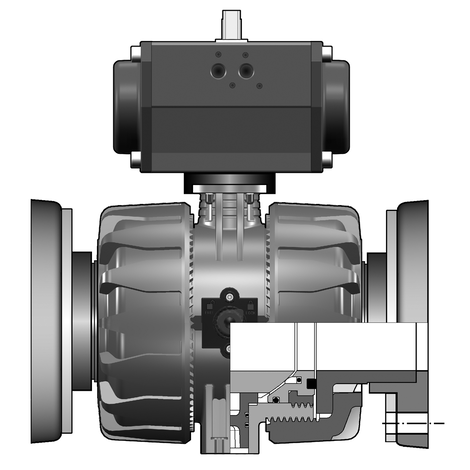

2/2-Wege-Kugelhahn VKD, PVC-U, d 75 - d 110, Festflansch, NC
- 2/2-Wege-Kugelhahn mit gesicherten Überwurfmuttern aus PVC-U mit pneumatischem Stellantrieb
- Funktion: normal geschlossen
- Steuerdruck: Standard 5 bar
- reduzierter Steuerdruck: auf Anfrage
- Steueranschluss: G 1/4'' Namur
- *** DN 65 - DN 100 = PN16 auf Anfrage
- Anschluss: Festflansch aus PVC-U, gebohrt mit ovalen Schraubenlöchern für DIN und ANSI Standards
- Dichtung: wahlweise PTFE/EPDM oder PTFE/FKM
Dichtung: EPDM
Artikel | d | DN | PN | Antrieb | Dichtung | VE |
---|---|---|---|---|---|---|
221447090100075 | 75 | 65 | ***10 | NC | EPDM | 1 |
221447090100090 | 90 | 80 | ***10 | NC | EPDM | 1 |
221447090100110 | 110 | 100 | ***10 | NC | EPDM | 1 |
Dichtung: FKM
Artikel | d | DN | PN | Antrieb | Dichtung | VE |
---|---|---|---|---|---|---|
221447091100075 | 75 | 65 | ***10 | NC | FKM | 1 |
221447091100090 | 90 | 80 | ***10 | NC | FKM | 1 |
221447091100110 | 110 | 100 | ***10 | NC | FKM | 1 |
