523.567.0X | FKOC/CE

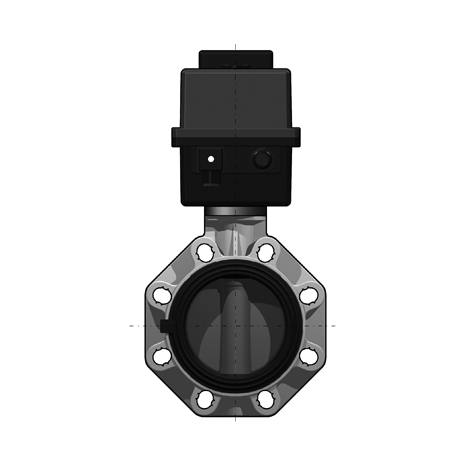

2/2-Wege-Industrie-Absperrklappe FKOC/CE, PVC-C, d 50 - d 315
2/2-Wege-Industrie-Absperrklappe
- mit elektrischem Stellantrieb, Endlagenrückmeldern, Handnotbetätigung, optischer Stellungsanzeige und Heizwiderstand
- Stellantriebsdaten: Standard 100-240V / 50-60Hz (AC),
- Gehäuse: PP/GFK
- Klappenscheibe: PVC-C
- Anschluss: Zwischenflanscharmatur
- Dichtung: wahlweise EPDM oder FKM
- DN 250 + DN 300: 230 V/AC
- ohne Aufpreis 24V AC/DC (DN 40 - DN 200)
- andere Spannungen auf Anfrage
Dichtung: EPDM
| Artikel | d | DN | PN | Antrieb | Dichtung | VE |
|---|---|---|---|---|---|---|
| 523567000015050 | 50 | 40 | 16 | 90-240V / 50-60Hz (AC) | EPDM | 1 |
| 523567000015063 | 63 | 50 | 16 | 90-240V / 50-60Hz (AC) | EPDM | 1 |
| 523567000015075 | 75 | 65 | 10 | 90-240V / 50-60Hz (AC) | EPDM | 1 |
| 523567000015090 | 90 | 80 | 10 | 90-240V / 50-60Hz (AC) | EPDM | 1 |
| 523567000015110 | 110 | 100 | 10 | 90-240V / 50-60Hz (AC) | EPDM | 1 |
| 523567000015140 | 140 | 125 | 10 | 90-240V / 50-60Hz (AC) | EPDM | 1 |
| 523567000015160 | 160 | 150 | 10 | 90-240V / 50-60Hz (AC) | EPDM | 1 |
| 523567000015225 | 225 | 200 | 10 | 90-240V / 50-60Hz (AC) | EPDM | 1 |
| 523567000015280 | 280 | 250 | 10 | 90-240V / 50-60Hz (AC) | EPDM | 1 |
| 523567000015315 | 315 | 300 | 8 | 90-240V / 50-60Hz (AC) | EPDM | 1 |
Dichtung: FKM
| Artikel | d | DN | PN | Antrieb | Dichtung | VE |
|---|---|---|---|---|---|---|
| 523567001015050 | 50 | 40 | 16 | 90-240V / 50-60Hz (AC) | FKM | 1 |
| 523567001015063 | 63 | 50 | 16 | 90-240V / 50-60Hz (AC) | FKM | 1 |
| 523567001015075 | 75 | 65 | 10 | 90-240V / 50-60Hz (AC) | FKM | 1 |
| 523567001015090 | 90 | 80 | 10 | 90-240V / 50-60Hz (AC) | FKM | 1 |
| 523567001015110 | 110 | 100 | 10 | 90-240V / 50-60Hz (AC) | FKM | 1 |
| 523567001015140 | 140 | 125 | 10 | 90-240V / 50-60Hz (AC) | FKM | 1 |
| 523567001015160 | 160 | 150 | 10 | 90-240V / 50-60Hz (AC) | FKM | 1 |
| 523567001015225 | 225 | 200 | 10 | 90-240V / 50-60Hz (AC) | FKM | 1 |
| 523567001015280 | 280 | 250 | 10 | 90-240V / 50-60Hz (AC) | FKM | 1 |
| 523567001015315 | 315 | 300 | 8 | 90-240V / 50-60Hz (AC) | FKM | 1 |
Dichtung: EPDM
| Artikel | d | DN | PN | Antrieb | Dichtung | VE |
|---|---|---|---|---|---|---|
| 523567000022050 | 50 | 40 | 16 | 24V AC/DC | EPDM | 1 |
| 523567000022063 | 63 | 50 | 16 | 24V AC/DC | EPDM | 1 |
| 523567000022075 | 75 | 65 | 10 | 24V AC/DC | EPDM | 1 |
| 523567000022090 | 90 | 80 | 10 | 24V AC/DC | EPDM | 1 |
| 523567000022110 | 110 | 100 | 10 | 24V AC/DC | EPDM | 1 |
| 523567000022140 | 140 | 125 | 10 | 24V AC/DC | EPDM | 1 |
| 523567000022160 | 160 | 150 | 10 | 24V AC/DC | EPDM | 1 |
| 523567000022225 | 225 | 200 | 10 | 24V AC/DC | EPDM | 1 |
| 523567000022280 | 280 | 250 | 10 | 24V AC/DC | EPDM | 1 |
| 523567000022315 | 315 | 300 | 8 | 24V AC/DC | EPDM | 1 |
Dichtung: FKM
| Artikel | d | DN | PN | Antrieb | Dichtung | VE |
|---|---|---|---|---|---|---|
| 523567001022050 | 50 | 40 | 16 | 24V AC/DC | FKM | 1 |
| 523567001022063 | 63 | 50 | 16 | 24V AC/DC | FKM | 1 |
| 523567001022075 | 75 | 65 | 10 | 24V AC/DC | FKM | 1 |
| 523567001022090 | 90 | 80 | 10 | 24V AC/DC | FKM | 1 |
| 523567001022110 | 110 | 100 | 10 | 24V AC/DC | FKM | 1 |
| 523567001022140 | 140 | 125 | 10 | 24V AC/DC | FKM | 1 |
| 523567001022160 | 160 | 150 | 10 | 24V AC/DC | FKM | 1 |
| 523567001022225 | 225 | 200 | 10 | 24V AC/DC | FKM | 1 |
| 523567001022280 | 280 | 250 | 10 | 24V AC/DC | FKM | 1 |
| 523567001022315 | 315 | 300 | 8 | 24V AC/DC | FKM | 1 |
