RS VL
Vacuum-loading repair saddle SDR 11
Vacuum-loading repair saddle RS VL SDR 11
- Gas, water and H2
- Maximum pressure: Gas 10 bar; Water 16 bar
- Material; PE 100
- Vacuum clamping option (vacuum-loading):
- Safe clamping with vacuum technology
- Ideal contact with the pipe
- Without wrapping around the pipe
- Safety technology
Note:
Can only be used with the vacuum pump VACUPUMP (Order No. 613827).
Only apply to minor pipe damage. The damage must be located within the repair area and not in the fusion zone.
PE 100 SDR 17
Maximum permissible working pressure 10 bar (water) / 5 bar (gas)
| SKU | d1 | repairArea | B1 | B2 | Weight kg | BX | PU |
|---|---|---|---|---|---|---|---|
| 616366 | 500 | 230 | 521 | 530 | 13,600 | 1 | 4 |
| 616367 | 560 | 230 | 577 | 530 | 14,300 | 1 | 4 |
| 616368 | 630 | 230 | 634 | 530 | 15,000 | 1 | 4 |
| 616369 | 710 | 230 | 712 | 530 | 18,900 | 1 | 4 |
| 616370 | 800 | 230 | 643 | 530 | 15,800 | 1 | 4 |
| 616371 | 900 | 230 | 714 | 530 | 17,600 | 1 | 4 |
| 616372 | 1000 | 230 | 654 | 530 | 16,400 | 1 | 4 |
| 616379 | 1200 | 230 | 655 | 530 | 16,250 | 1 | 2 |
Other dimensions available on request
FRIALEN safety fittings can be fused with SDR levels 17 to 17.6.
Other levels of SDR can be processed on request. Please note the mandatory labels directly on the product.
Downloads
7.4 MB, ZIP
get_app
CAD data
1.9 MB, PDF
get_app
Assembly instruction
Accessories

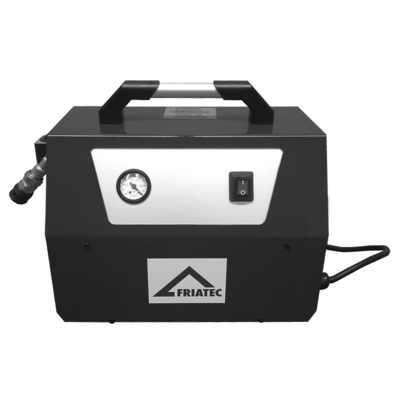

VACUPUMP

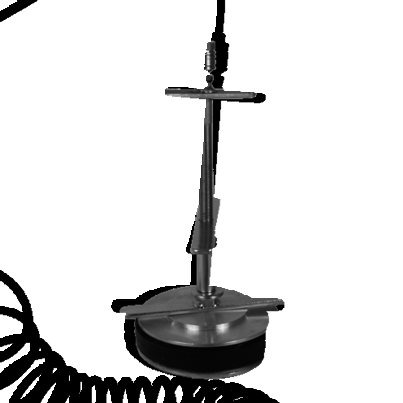

PRESSKO
